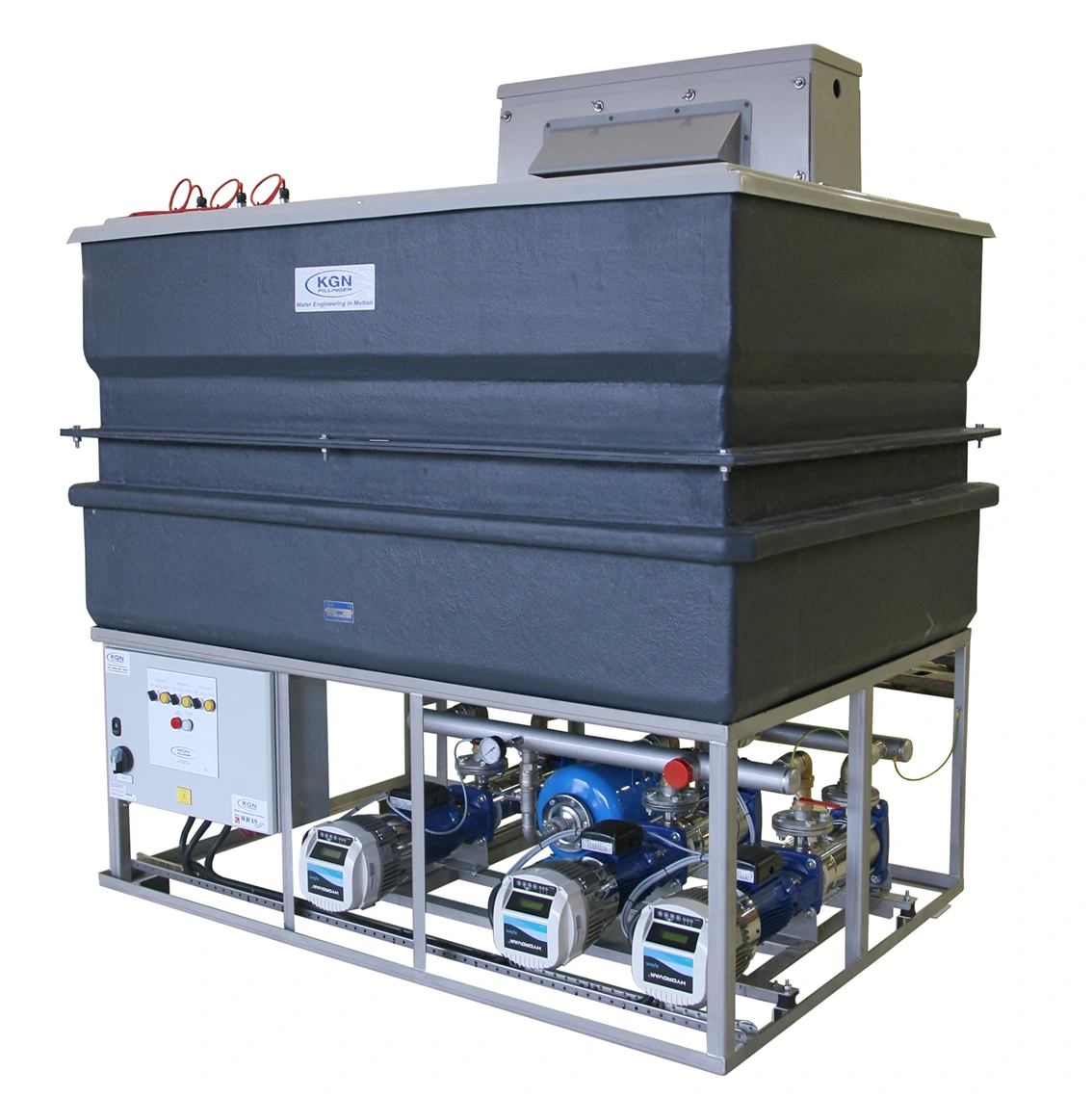

Standard packaged systems

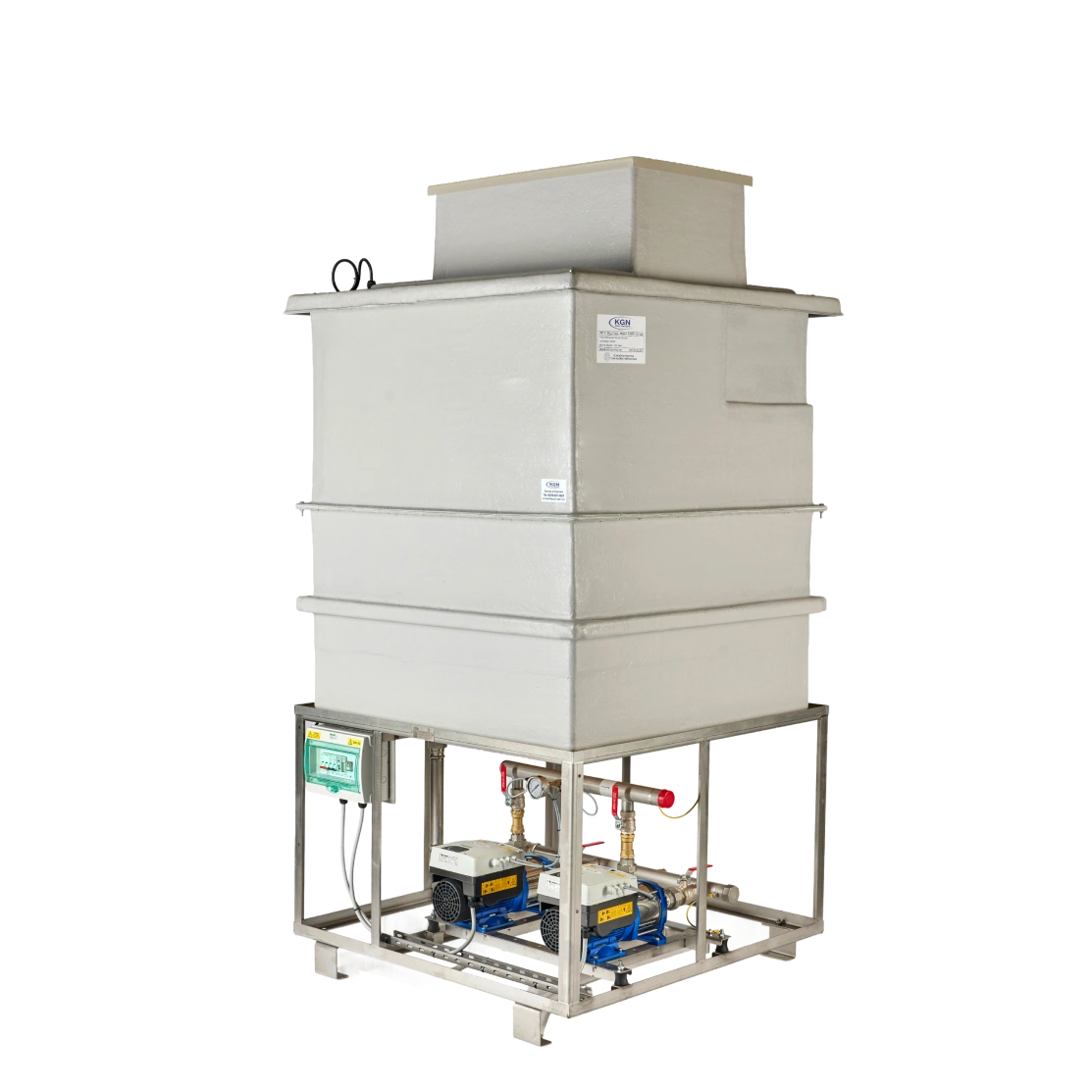

GRP break tank mounted above an EV or AV booster set on a stainless steel base frame. Kiwa approved tanks available in multiple sizes and dimensions. Configured for your plant room layout.
Packaged pump systems
Tank and booster as a single unit
A packaged system combines a break tank and booster set in one pre-assembled unit. Instead of separate components installed on site, everything arrives ready to connect. We design and manufacture packaged systems for residential, commercial and water utility applications, built to your specification at our UK facility.
Bespoke packaged systems
Configured to fit

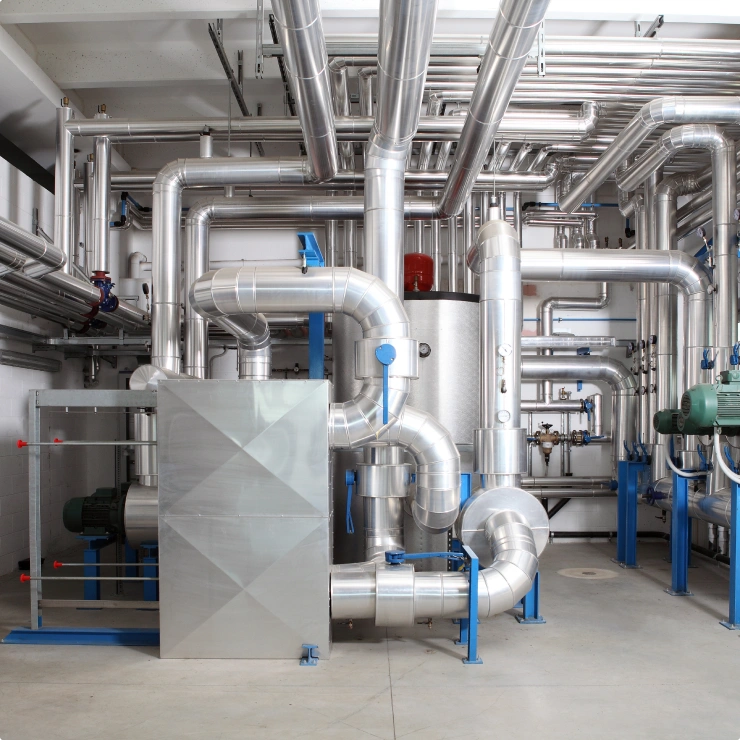

Standard packaged systems come in standard sizes. Plant rooms do not.
Our in-house fabrication means we can configure tank dimensions, manifold positions and connection orientations to suit your plant room layout. GRP break tanks in one-piece or sectional construction. Stainless steel pipework throughout. EV or AV booster sets sized to your duty requirements.
We also manufacture UPOD underground packaged systems for sites where plant room space is not available. These can be installed below car parks, courtyards and access roads, with all controls housed in a single accessible chamber.
Packaged system applications
Where packaged systems are used
Packaged systems are specified when a break tank is required and plant room space is at a premium.
Hotels and residential developments where mains water storage provides resilience during supply interruptions. Commercial buildings requiring boosted cold water with backflow prevention. Sites with limited plant room footprint where a combined unit simplifies installation. Water utility site services where pre-assembled packages reduce installation time.
Packaged systems range
Above and below ground options
Packaged system specifications
Technical features
Standard features
-
Kiwa approved GRP break tanks (one-piece or sectional)
-
316L stainless steel pipework
-
Stainless steel base frame
-
Float valve and overflow
-
Individual inverter drives on each pump
-
Anti-vibration mounts and flexible connections
-
UK Regulation 4 compliant
Optional features
-
CAT5 air gap for backflow protection
-
Remote telemetry for fault alerts
-

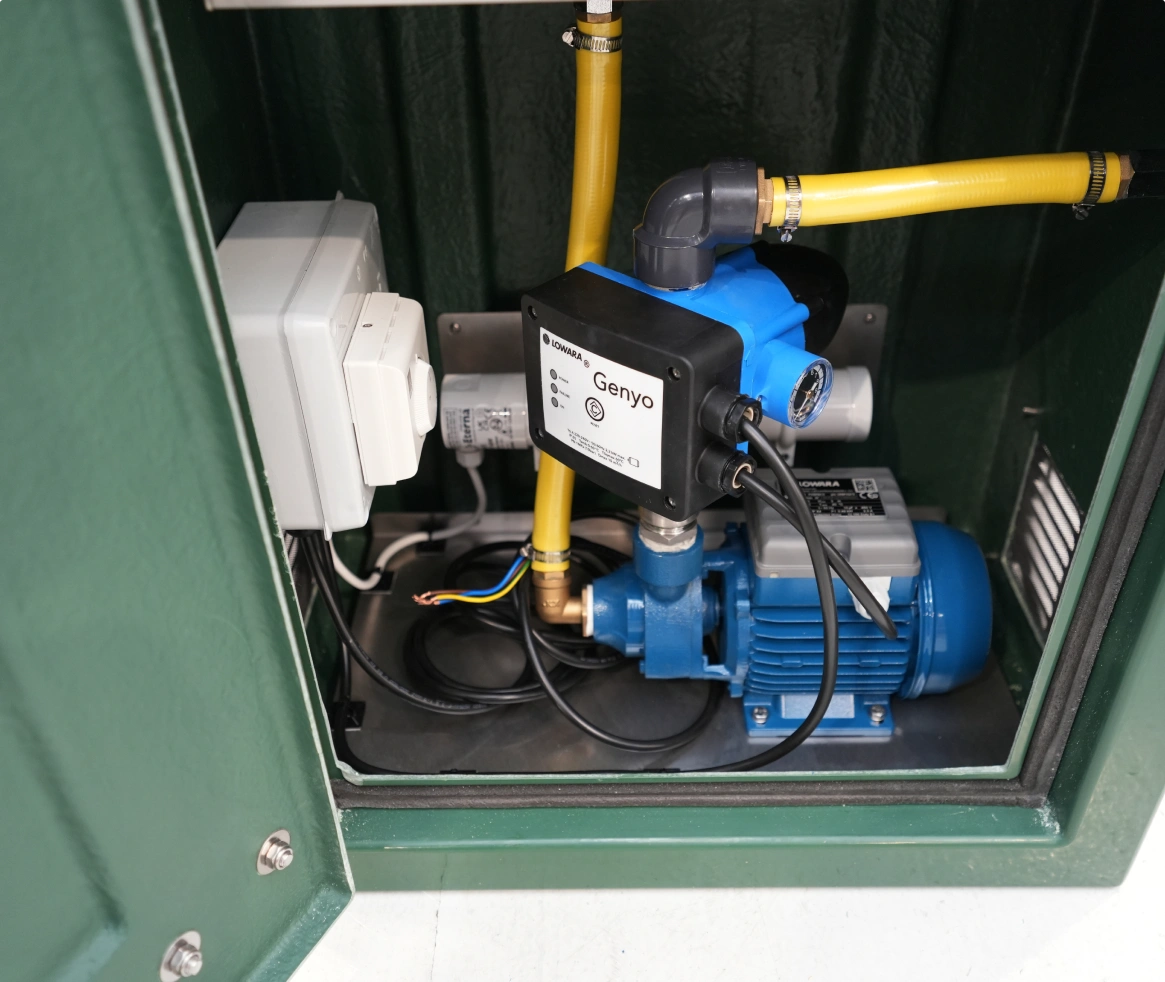

Kiosk housing for outdoor installation
-
BMS integration
