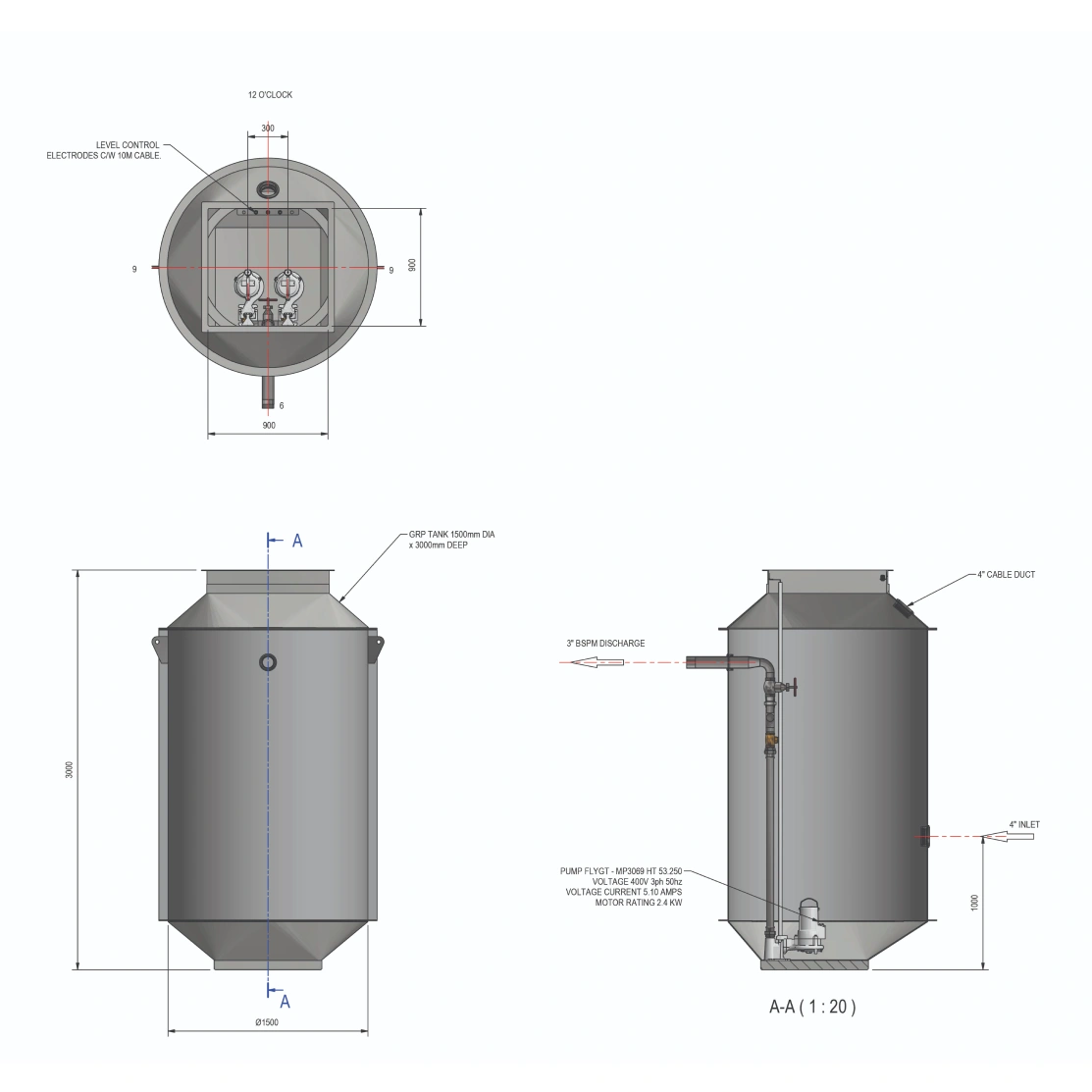

Below-ground pumping stations
Traditional GRP packaged chambers with submersible pumps, float switches and all necessary pipework. Available in standard and bespoke configurations for domestic, commercial and utility applications.
Sewage and wastewater pumping
Moving wastewater when gravity can’t
When wastewater needs to travel uphill or across terrain where gravity drainage is not possible, a pumping station lifts it to the main sewer or treatment works. We design and manufacture sewage pumping stations for water utilities and building services applications, from basement drainage to large-scale infrastructure.
Bespoke pumping stations
Designed for your site
Every site presents different challenges. Chamber depths vary. Access constraints dictate installation methods. Flow rates and head requirements differ from project to project.
When a concrete chamber has been utilised, we provide complete kit-out solutions with 316L stainless steel pipework and fittings as standard. For new installations, we supply packaged GRP or stainless steel chambers ready for delivery. Our in-house fabrication means we can adapt pipework configurations, valve arrangements and control systems to suit your exact requirements.
Sewage and wastewater pumping applications
Where pumping stations are used
Pumping stations are required when gravity drainage is not feasible.
Whether that’s a basement below sewer level, a development where deep gravity sewers would require extensive groundworks, rural properties and remote sites without access to mains drainage, or water utility storm overflow that holds and transfers flows during heavy rainfall. The common thread is wastewater that cannot reach its destination by gravity alone.
Sewage and wastewater pumping range
Kit-out solutions for above and below ground

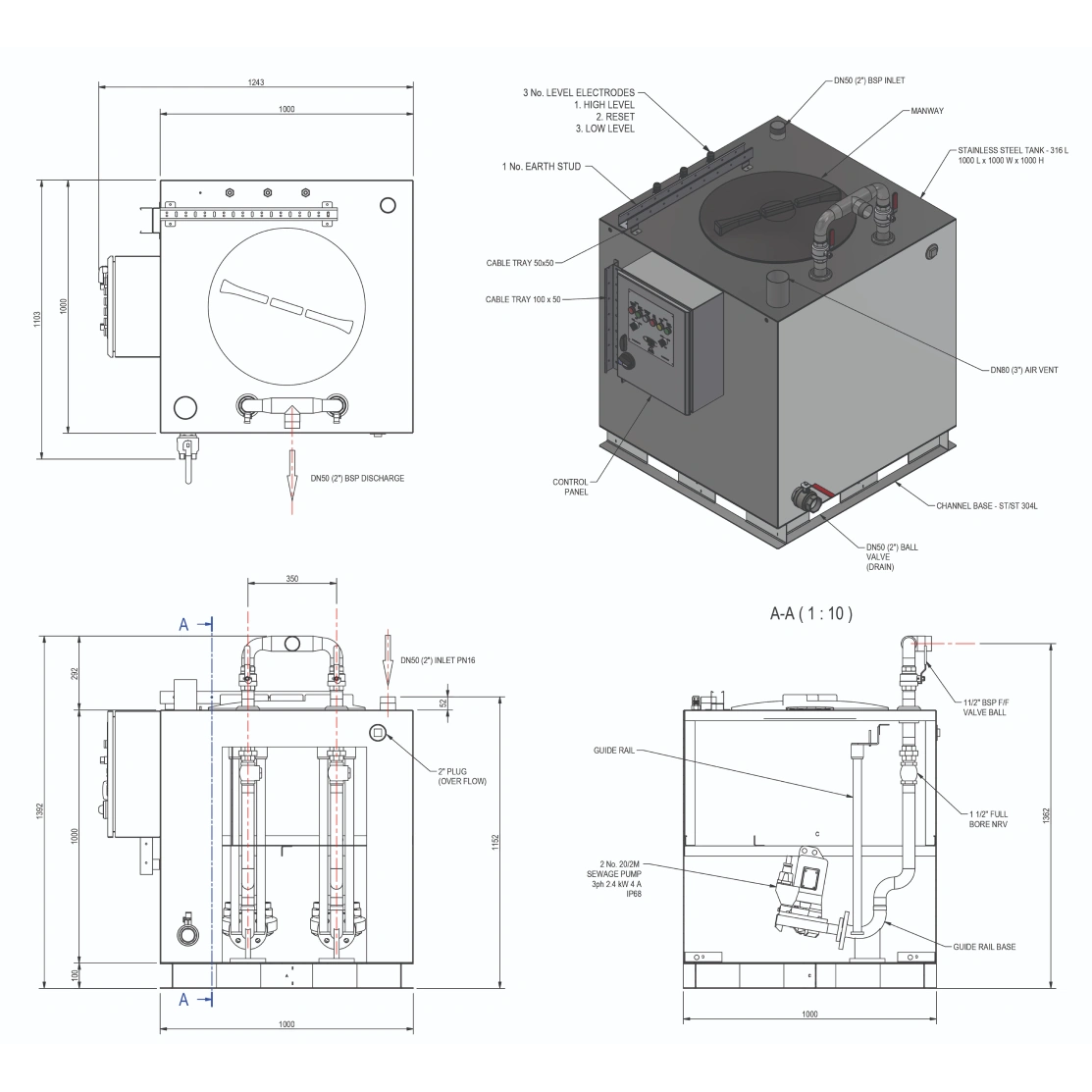

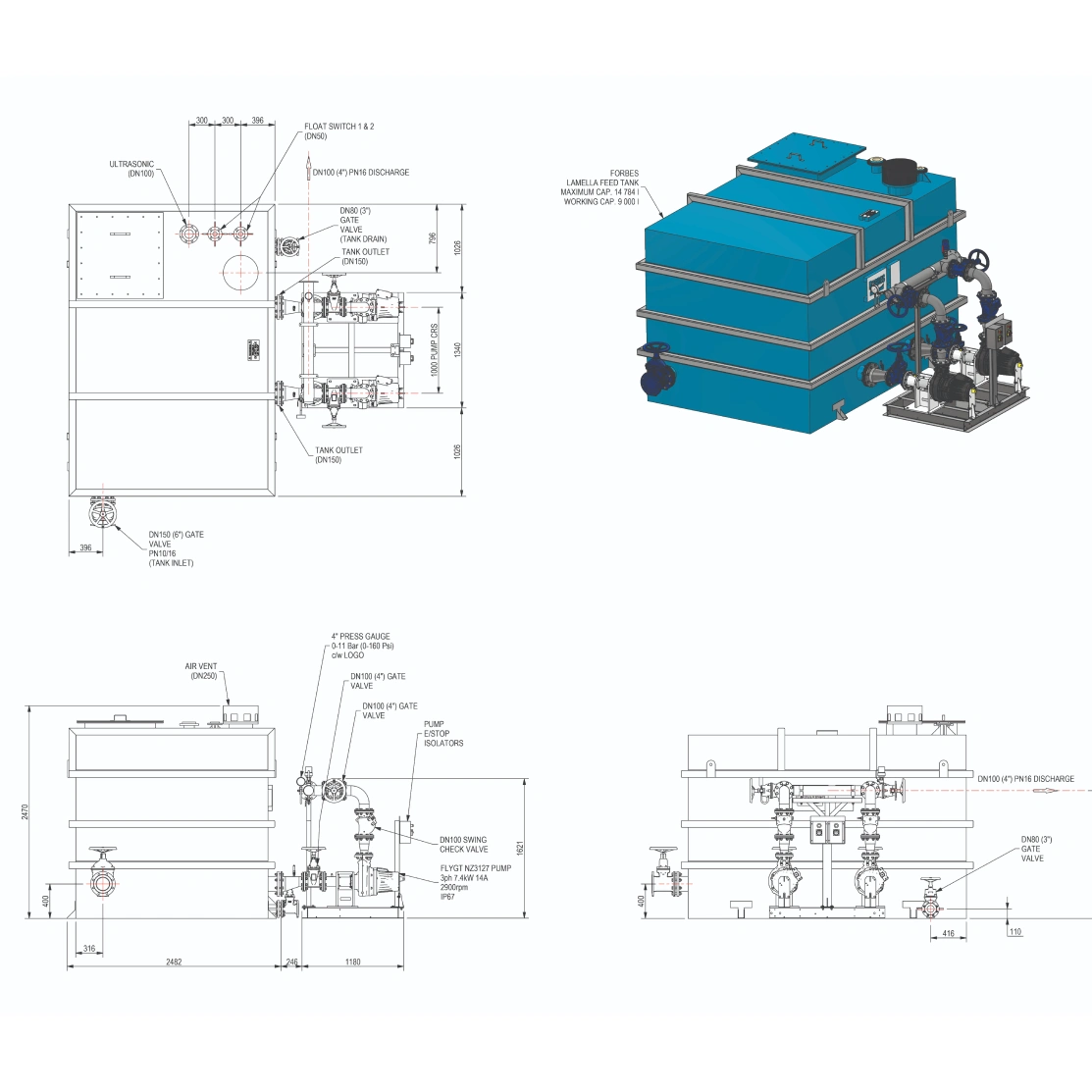

Above-ground pumping stations
Surface-mounted stainless steel chambers for applications where below-ground installation is not feasible. 304 stainless steel tanks engineered to any size, designed for easy maintenance access.

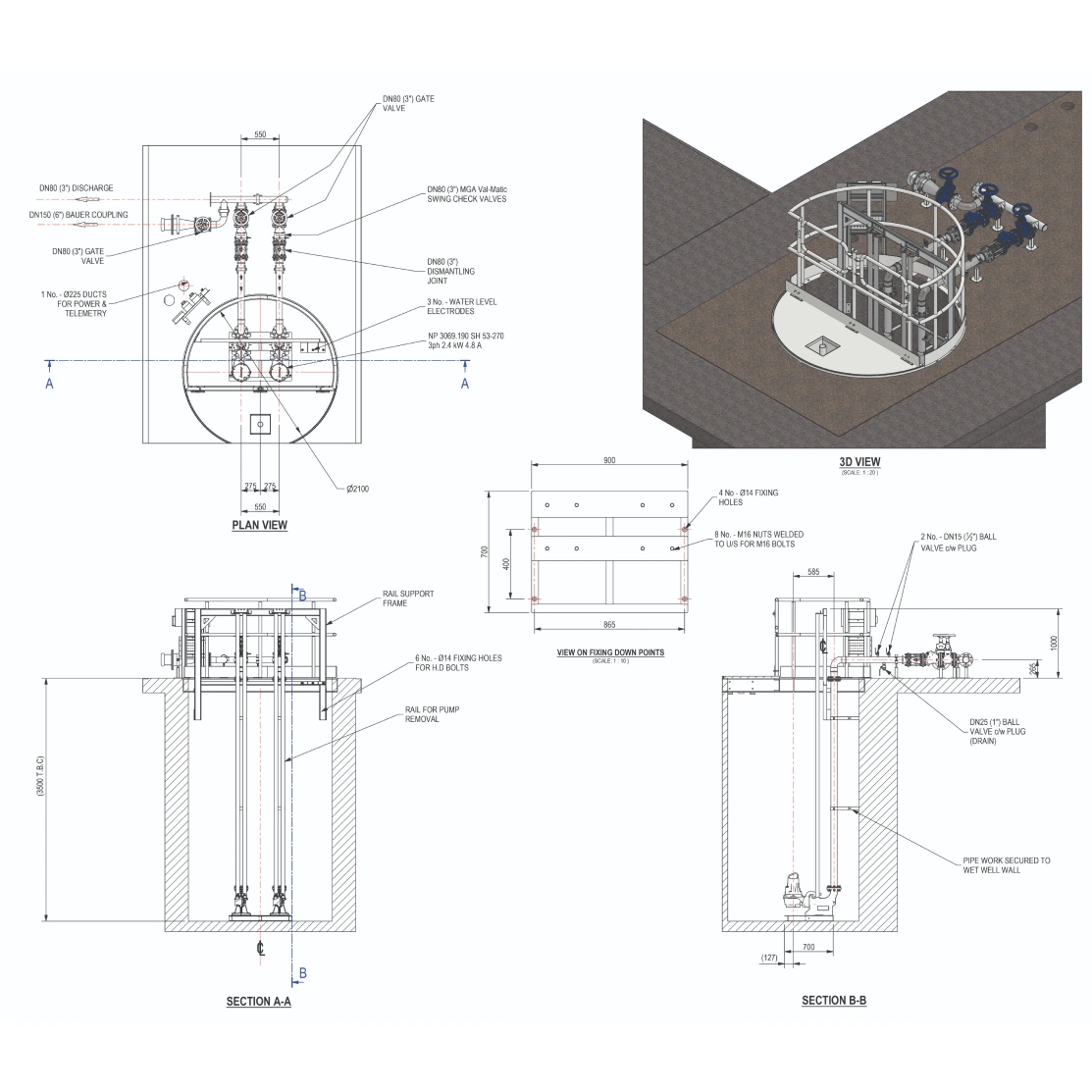

Chamber kit-outs
Complete pipework and pump packages for installation in pre-cast or in-situ concrete chambers. 316L stainless steel as standard. Includes pumps, guide rails, pipework, valves and control panel.

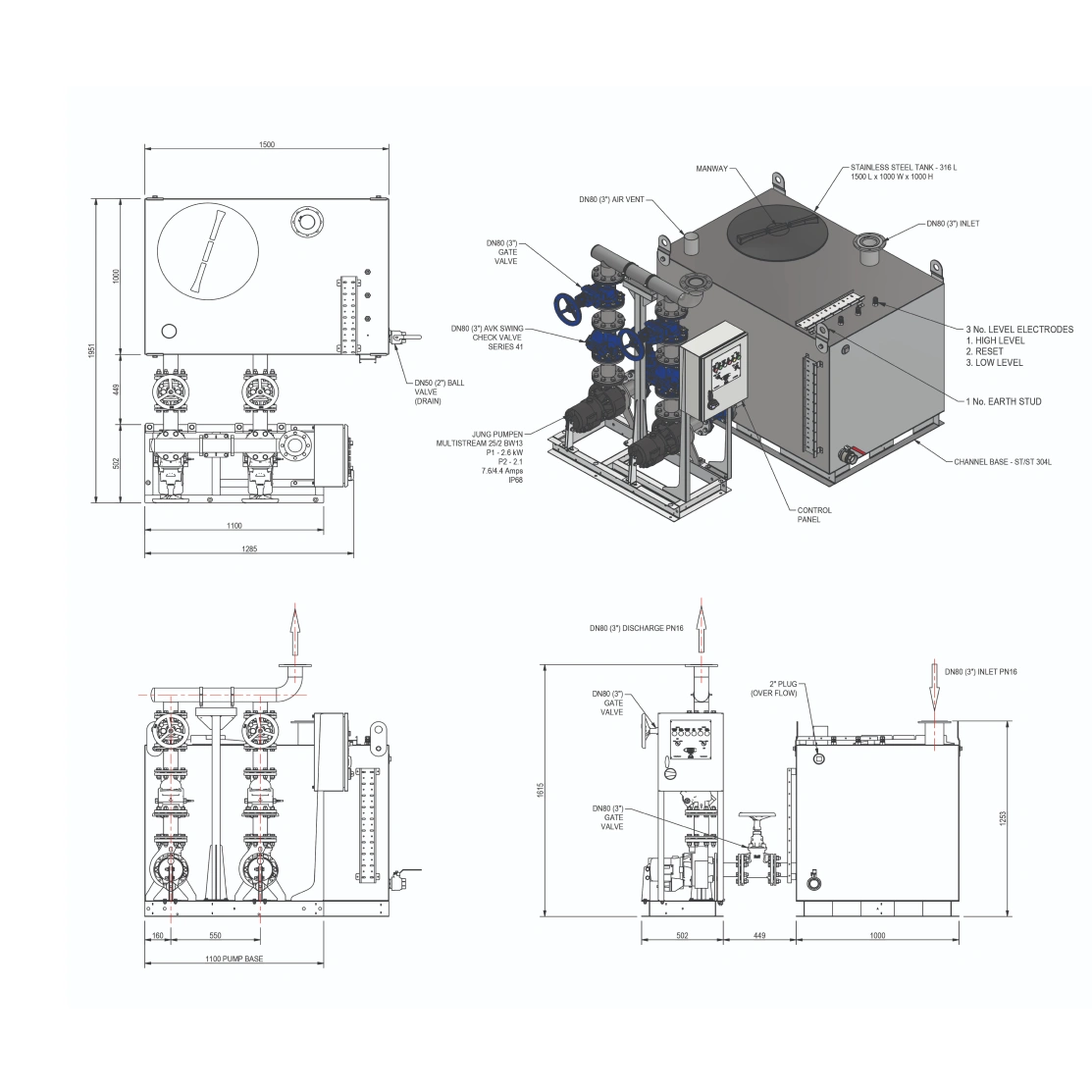

Dry well systems
Intelligent pumping solutions with pumps housed in a dry chamber adjacent to the wet well. Suitable for larger installations and confined space environments.
Sewage and wastewater pumping specifications
How it works
- Wastewater enters the wet well from incoming drains
- Float switches or sensors detect the rising level
- Pumps activate automatically when the set level is reached
- Wastewater is lifted to the discharge point
- Pumps cut out when the low level is reached
Standard features
- 316L stainless steel pipework and fittings
- Submersible pumps with guide rail system
- Control panel with duty/standby alternation
- High level alarm
- Non-return valves and isolation valves
Optional features
- Remote telemetry and alarm notification
- Variable speed drives
- Odour control systems
- Kiosk housing for control equipment
