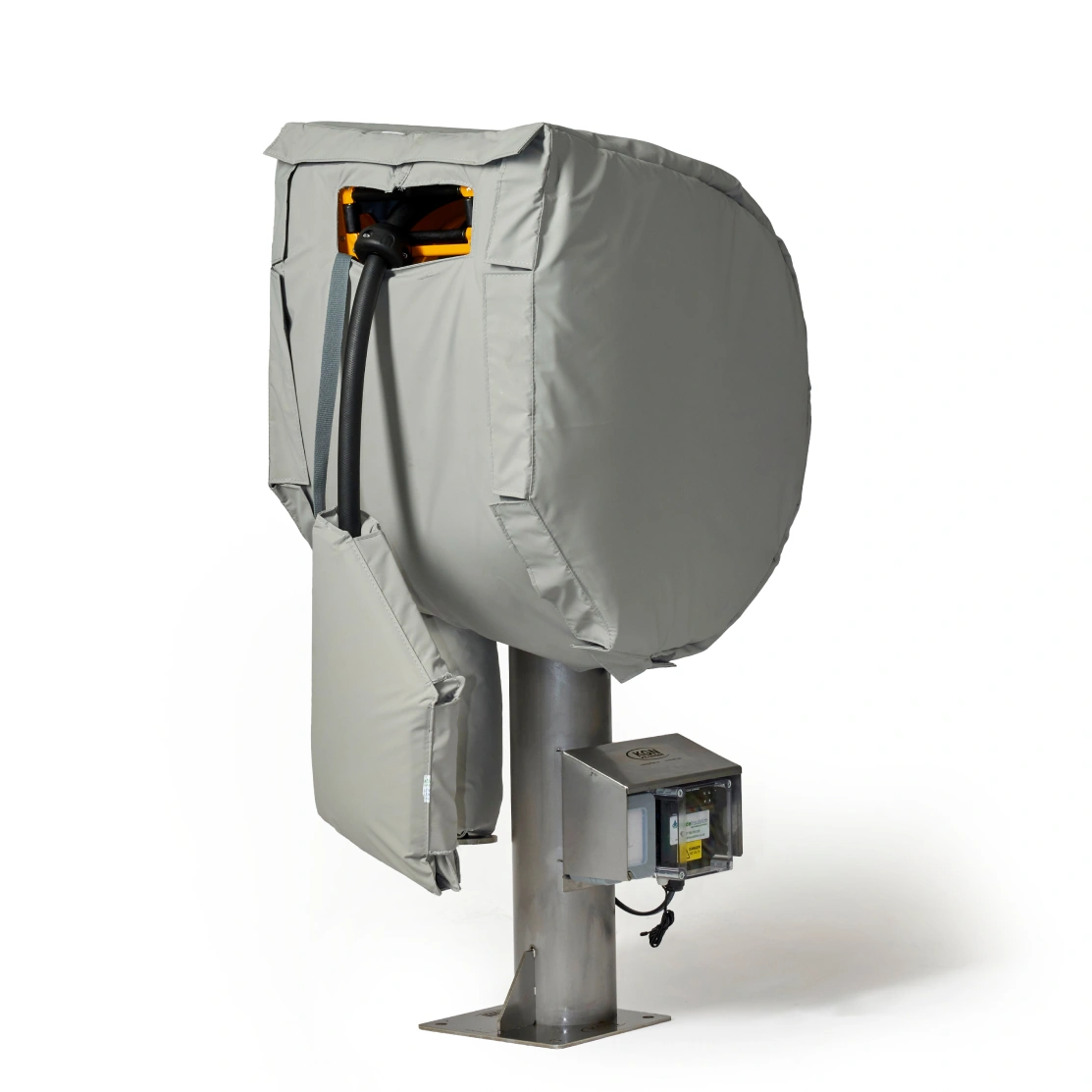

Hose Reel with Trace Heat Jacket
The KGN Pillinger Pedestal Mounted Hose Reel with Trace Heat Jacket is a heavy-duty stainless steel washdown solution designed for use in water utility, wastewater and industrial environments where frost protection is required. Supplied as a complete assembly, the unit combines a robust washdown pedestal with an integrated hose reel and trace heating system, ensuring reliable operation in low-temperature conditions.
Key Benefits
- Heavy-duty stainless steel construction for harsh environments
- Integrated hose reel for convenient washdown use
- Trace heating system for frost protection
- Complete, self-contained washdown solution
- Designed for durability and long-term performance
- Easy installation onto a prepared foundation
Design & Construction
The pedestal is engineered for strength, durability and long-term performance:
- Fabricated from stainless steel isometric tube
- Welded to an 8 mm thick baseplate with supporting gussets
- Designed for secure fixing to a suitable on-site foundation
Pipework and connections include:
- 316L stainless steel pipework throughout
- DN25 PN16 flanged connection for connection to site pipework
- Line-size lever ball isolation valve
- Braided stainless steel flexible hose connection to the reel
This ensures corrosion resistance and reliable operation in demanding environments.
Hose Reel Specification
- Spring-rewind hose reel
- ¾" hose rated to 103 bar
- Supplied with wash gun rated at approximately 75 l/min and associated fittings
- Suitable for air and water applications
Designed to provide a practical and efficient washdown solution for localised cleaning requirements.
Trace Heating System
The integrated trace heating system ensures protection against freezing conditions:
- Covers the hose reel and feed pipe assembly to 200 mm above ground level
- Includes additional trace heating cable for site installation flexibility
- Controlled via an IP65-rated thermostat mounted on the pedestal
- Powered from a single-phase mains isolation switch
- Electrical components rated IP65
- Protected by a stainless steel cover box to prevent water ingress
This ensures reliable year-round operation, even in exposed or low-temperature environments.
Typical Applications
- Water utility and wastewater treatment sites
- External washdown stations exposed to frost conditions
- Industrial sites requiring temperature-protected washdown systems
- Infrastructure where reliable winter operation is critical
Installation
- Designed for installation onto a prepared concrete foundation
- Simple connection via a flanged pipework interface
- Minimal on-site assembly required
