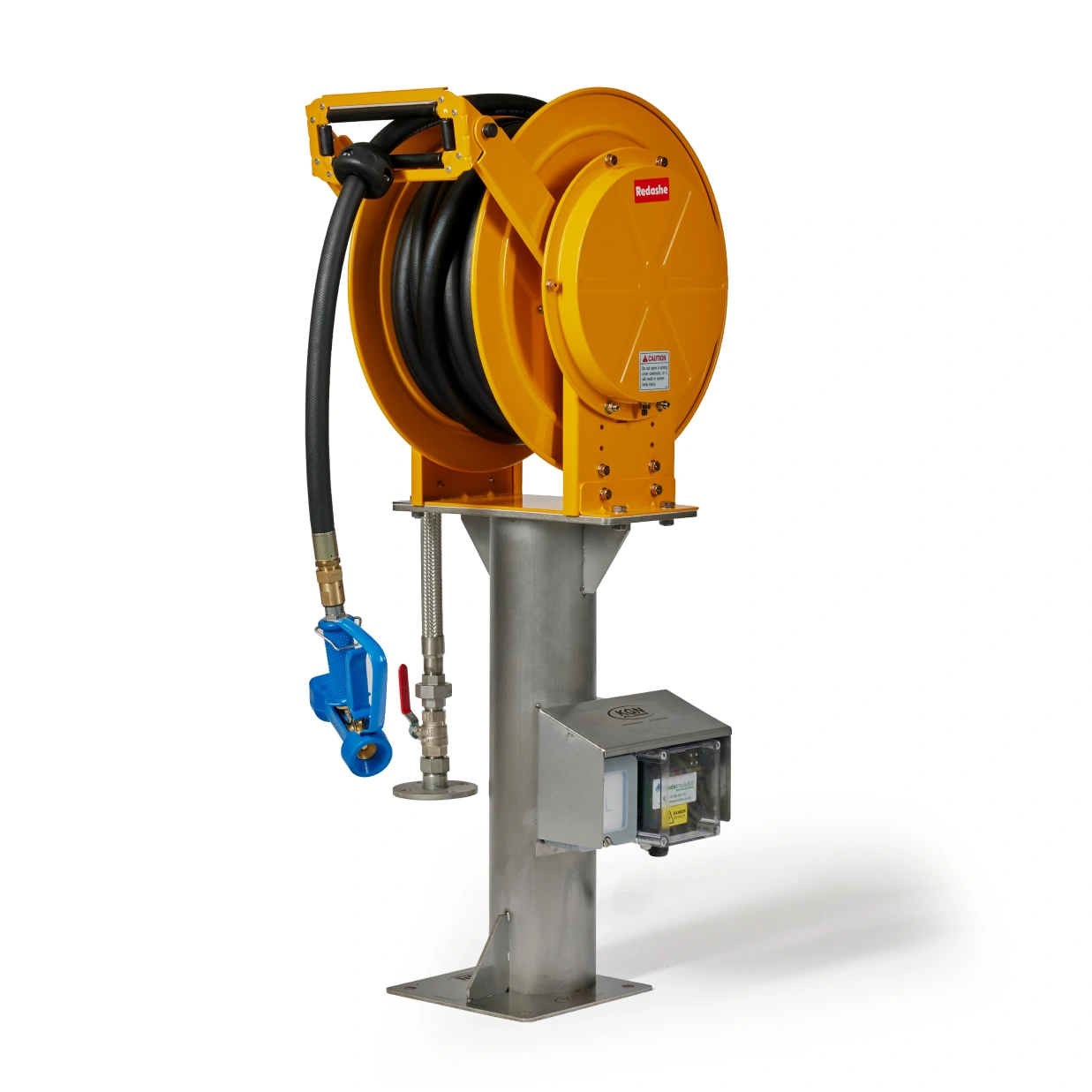

Pedestal Mounted Hose Reel
The KGN Pillinger Pedestal Mounted Hose Reel is a robust, heavy-duty washdown solution designed for use across water utility, wastewater and industrial environments. Manufactured from high-grade stainless steel and supplied as a complete assembly, the unit provides a reliable and durable washdown point, ideal for external installations where strength, longevity and ease of use are essential.
Key Benefits
- Heavy-duty stainless steel construction for harsh environments
- Complete washdown solution with integrated hose reel
- Designed for long-term durability and reliability
- Easy installation onto a prepared foundation
- Optional trace heating for frost protection
- Suitable for water utility and industrial applications
Design & Construction
The pedestal is engineered for strength and stability:
- Fabricated from stainless steel isometric tube
- Welded to an 8 mm thick baseplate with supporting gussets
- Designed for secure fixing to a suitable on-site foundation
Pipework and connections include:
- 316L stainless steel pipework throughout

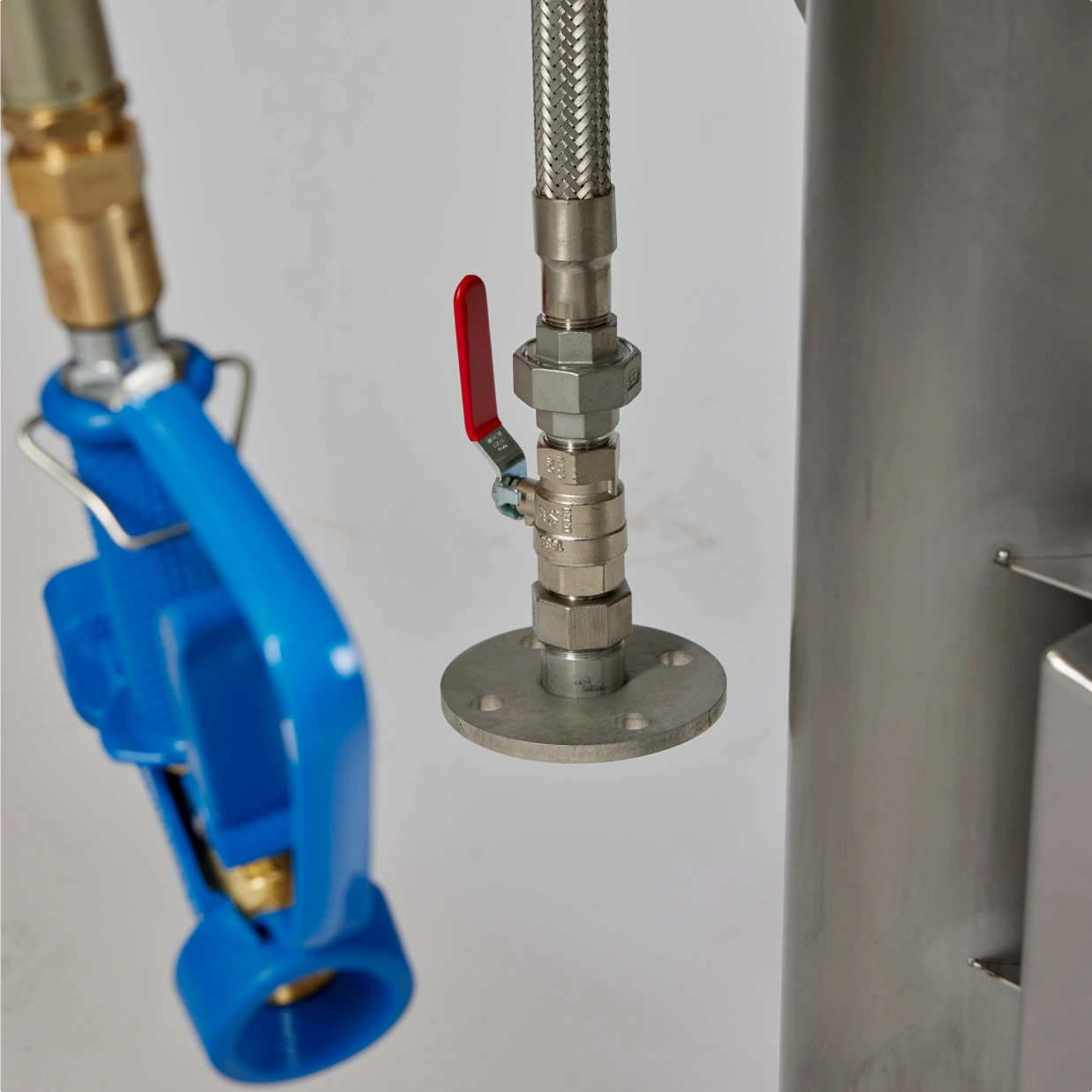

- DN25 PN16 flanged connection for installation interface
- Line-size lever ball isolation valve

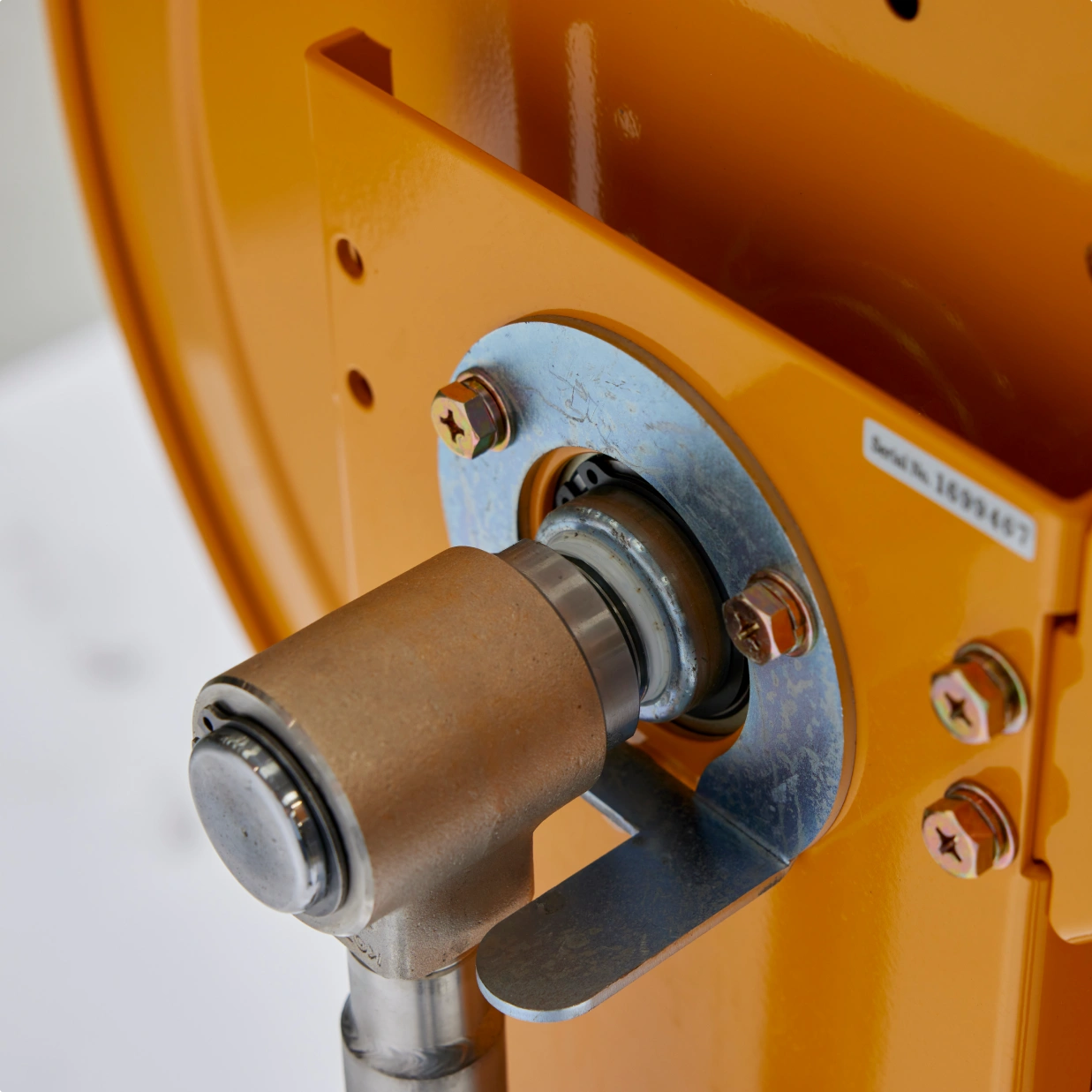

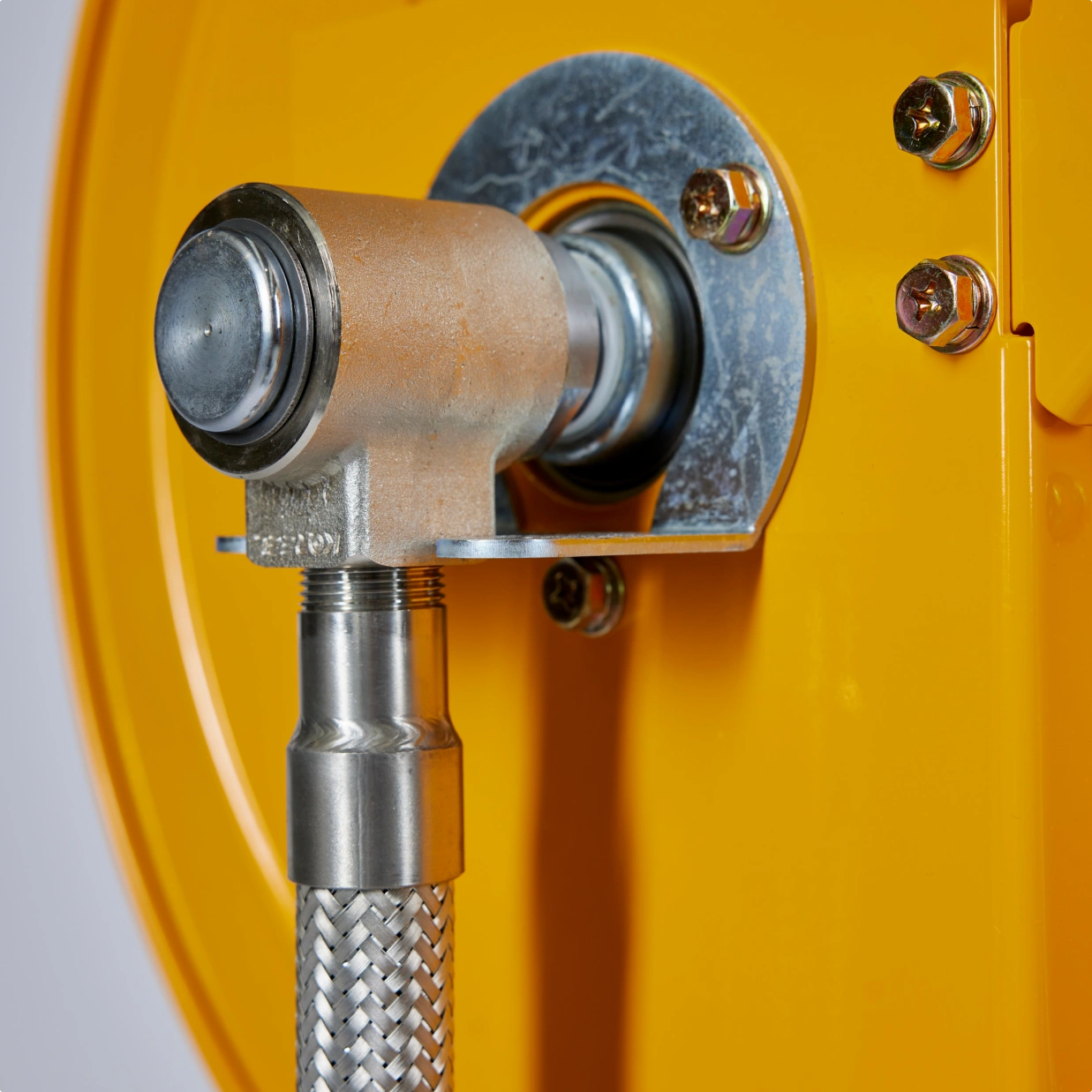

- Braided stainless steel flexible hose connection to the reel
This ensures corrosion resistance and long-term performance in demanding environments.
Hose Reel Specification
- Spring-rewind hose reel

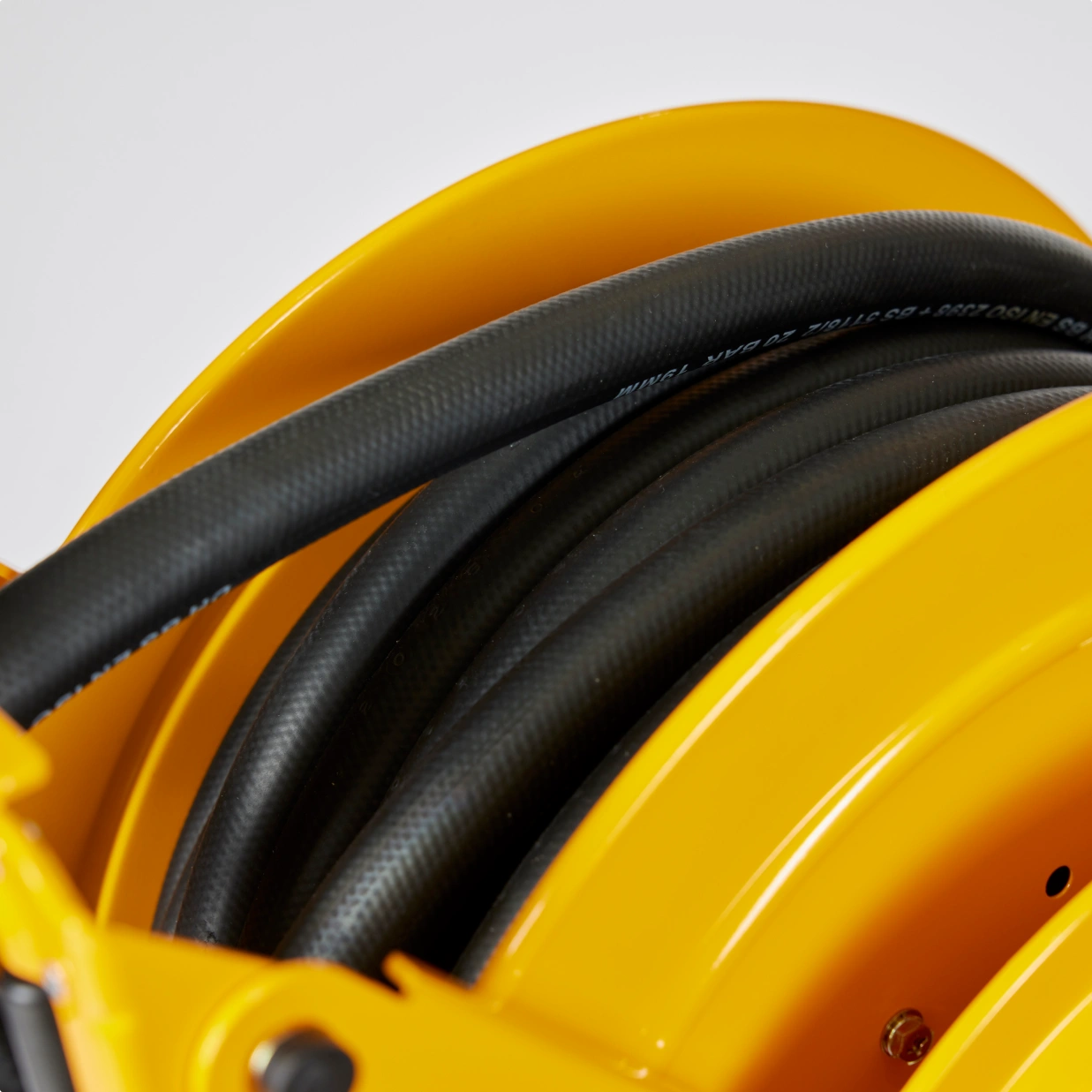

- ¾" hose rated to 103 bar
- Supplied with wash gun rated at 75 l/min and coupling components
- Suitable for air and water applications
All components are supplied as a complete package for ease of installation.
Optional Trace Heating
An optional trace heating system is available to protect against freezing conditions:
- Covers the hose reel and feed pipework to 200 mm above ground level
- Includes an additional 1 m trace heating cable for site installation
- Controlled via an IP65 thermostat mounted on the pedestal
- Powered from a single-phase mains isolation switch
- Electrical components rated IP65 and protected within a stainless steel enclosure
This ensures reliable operation in low-temperature environments.
Typical Applications
- Water utility and wastewater treatment sites
- Industrial washdown areas
- External cleaning stations
- Infrastructure requiring fixed washdown points
Installation
- Designed for fixing to a prepared concrete foundation
- Simple connection via a flanged pipework interface
- Minimal on-site assembly required
Product Variants
- Pedestal Mounted Hose Reel – 10m ¾” Hose
- Pedestal Mounted Hose Reel – 20m ¾” Hose
- Pedestal Mounted Hose Reel – 30m ¾” Hose
