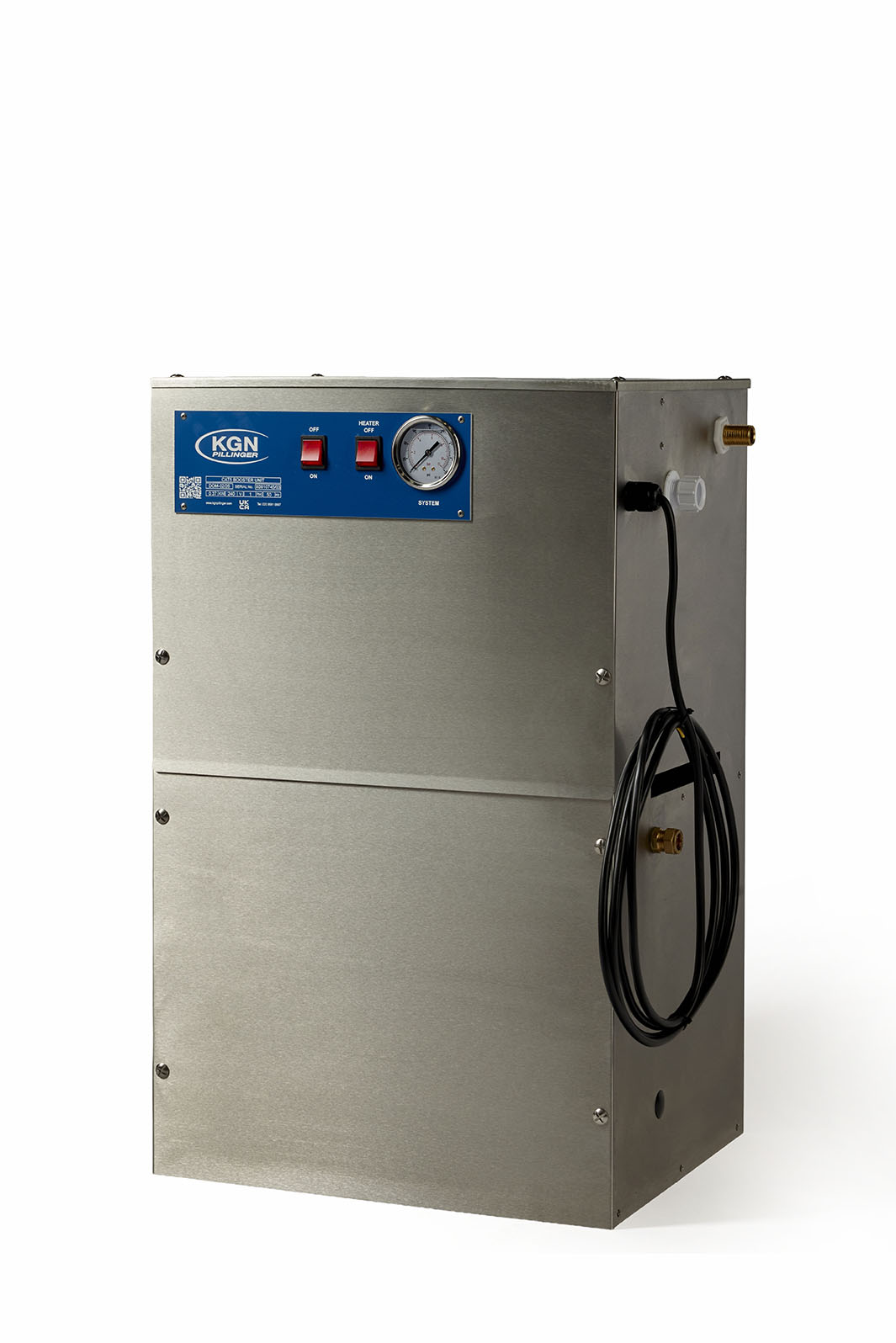

CAT5 Washdown Booster Set (Internal)
The KGN Pillinger CAT 5 Washdown Booster Set is a compact, self-contained system designed to deliver reliable washdown performance while protecting the mains water supply from contamination. Featuring a built-in Category 5 AB air gap, the unit prevents backflow and ensures compliance with water regulations, making it ideal for hygienic environments and applications where water safety is critical.
Key Benefits
- Category 5 backflow protection via AB air gap
- Compact, wall-mounted stainless steel unit
- Maintains consistent flow and pressure
- Fully self-contained and easy to install
- Reliable and low-maintenance operation
- Suitable for internal environments

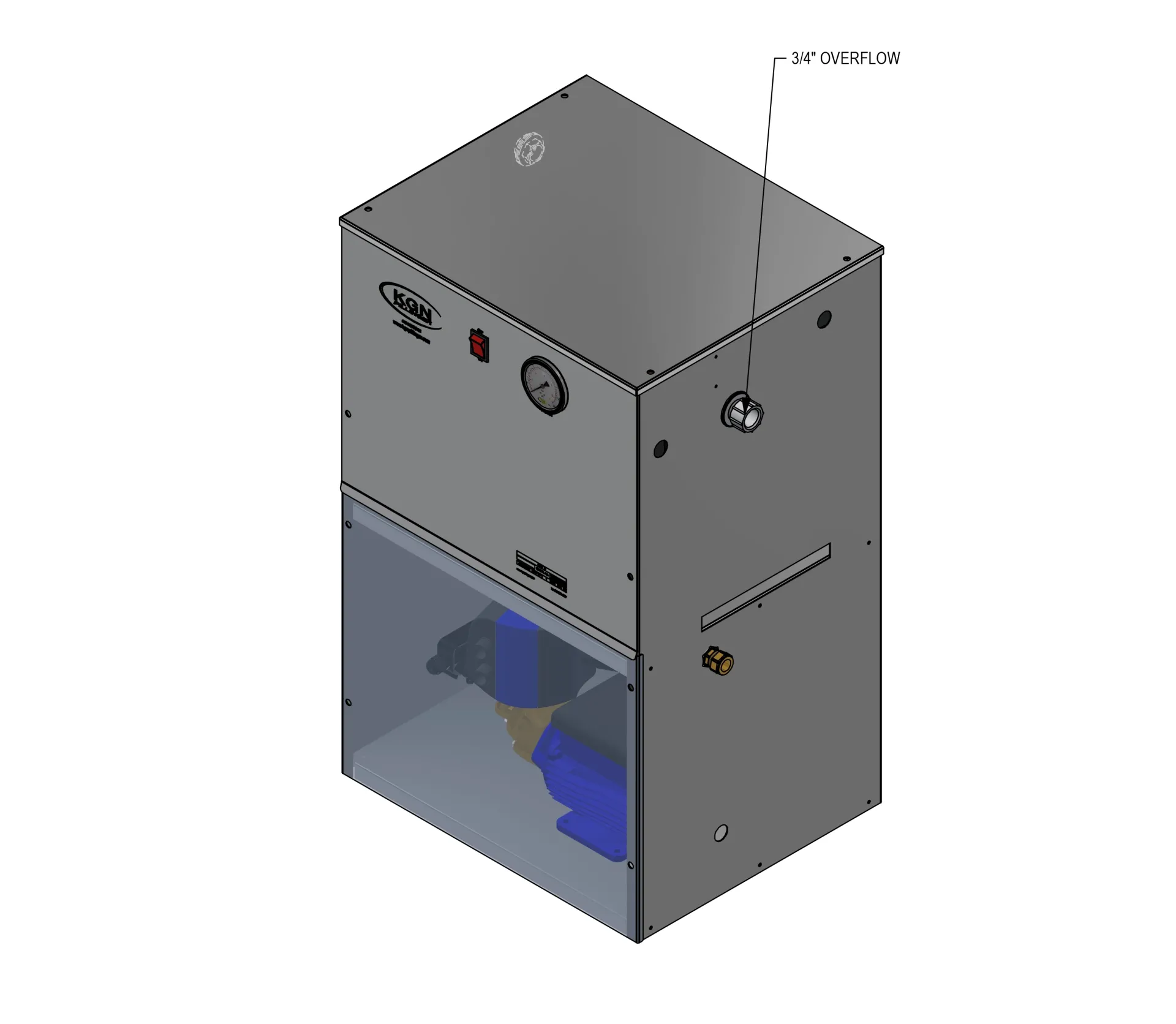

Design & Construction
- Housed in a lightweight stainless steel cabinet
- Integrated break tank and diaphragm pump
- Single outlet connection for washdown use
- Designed for wall or floor mounting
This compact design ensures easy installation and accessibility for maintenance.
Performance
- Duty: 0.25 l/s at 2.2 bar
- Break tank capacity: 18 litres
- Designed for consistent boosting performance in small applications
Key Features
- Automatic operation
- Illuminated on/off switch
- Glycerine-filled pressure gauge
- Easy access for servicing
- Optional heater for frost protection
Typical Applications
- Bin store washdown areas
- Small washdown systems
- Internal cleaning stations
- Applications requiring Category 5 protection
Technical Details
- Power: 0.37 kW
- Voltage: 240 V
- Width: 420 mm
- Depth: 370 mm
- Height: 750 mm
- Weight: approximately 25 kg
