Fill Spill Unit
The KGN Pillinger range of Fill Spill Units is designed to maintain pressure in large sealed heating systems subject to extreme temperature and pressure fluctuations. Engineered for demanding applications, each unit is built around a robust 304 stainless steel tank, delivering long-term durability and dependable system protection.
Fill Spill Units provide an effective alternative to traditional expansion vessels in large systems. By safely accommodating expansion and contraction at high temperatures, they help maintain stable system pressure while supporting efficient and reliable operation.
Units are available as bespoke design builds, allowing dimensional, layout and control configurations to be tailored to suit specific plant room constraints and project requirements.
Key Advantages
- Designed for large sealed systems exposed to extreme temperature and pressure changes
- 304 stainless steel tank for corrosion resistance and long service life
- Capable of operating at temperatures exceeding 120°C
- Eliminates the requirement for a separate system expansion vessel
- Available in bespoke designs to suit plant room space and layout constraints
Design & Construction

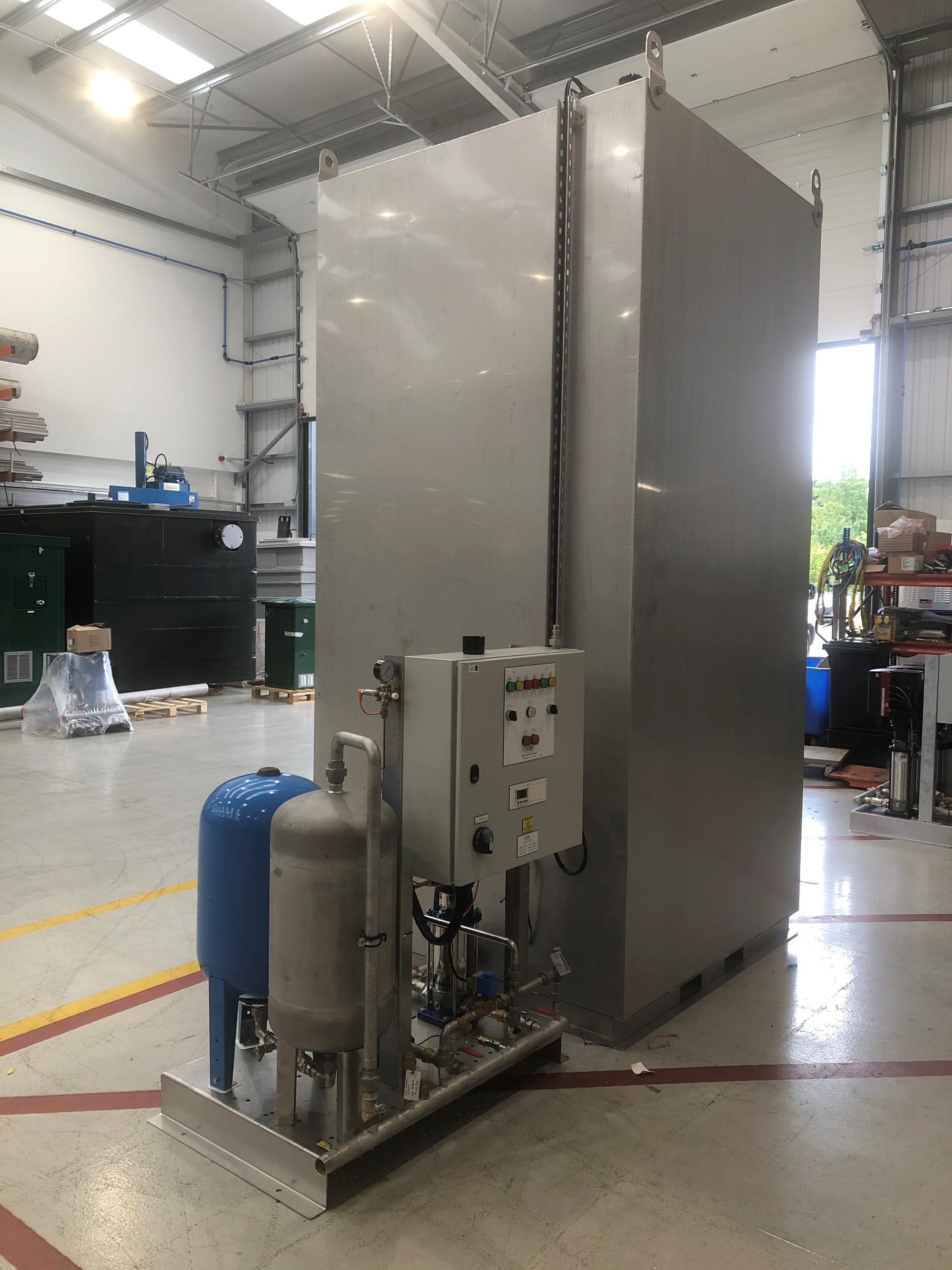

Each Fill Spill Unit consists of a stainless steel tank connected to a packaged booster set, supplied on a single skid or as a split arrangement where required. The booster set comprises pumps, an expansion vessel and a bespoke control panel, delivering an integrated, space-efficient solution.
Typical Applications
Suitable for large heating systems where high temperatures and extreme pressure variations are expected, including:
- Commercial properties
- Apartment and residential buildings
- Leisure centres
- Industrial facilities
- Water utility installations
- Office buildings
- Stadiums and arenas
- Hospitals and healthcare facilities
Features
- Multiple pump configurations available
- Multiple volt-free BMS contacts for system integration
- Stainless steel base frame/skid construction
- 316L stainless steel pipework as standard
- Bespoke control panel with custom features and functions
- Custom-built stainless steel tank sized to project requirements, with all connections provided
- Can be incorporated with additional circulation and dosing equipment
- Inverter drive options available for constant pressure control
- Optional remote telemetry system for fault notifications via SMS text or telephone line
- Tank incorporates thermal spheres to reduce evaporation and calm water at high temperatures
- Anti-vibration mounts and flexible connections supplied as standard to minimise noise transmission
- Units can be supplied fully packaged on a common base frame or as separate tank and pump sets with interconnecting pipework
