WashBoost™ Compact
The KGN Pillinger WashBoost™ Compact is the most basic model within the WashBoost™ range, designed to deliver reliable pressure boosting for straightforward washdown applications. Typically used to supply manual washdown points on water utility and wastewater sites, the system provides a simple, robust and efficient solution for environments where reliability and ease of installation are key.
Product Variations
- WashBoost™ Compact 511 Left Hand Booster System
- WashBoost™ Compact 511 Right Hand Booster System
- WashBoost™ Compact 513 Left Hand Booster System
- WashBoost™ Compact 513 Right Hand Booster System
- WashBoost™ Compact 1006 Left Hand Booster System
- WashBoost™ Compact 1006 Right Hand Booster System
- WashBoost™ Compact 1008 Left Hand Booster System
- WashBoost™ Compact 1008 Right Hand Booster System
Key Benefits
- Simple and cost-effective entry-level booster solution
- Ideal for manual washdown applications
- Fully factory-assembled for rapid deployment
- Single power supply required
- Short lead times using stocked components
- Reliable and low-maintenance operation
Design & Construction

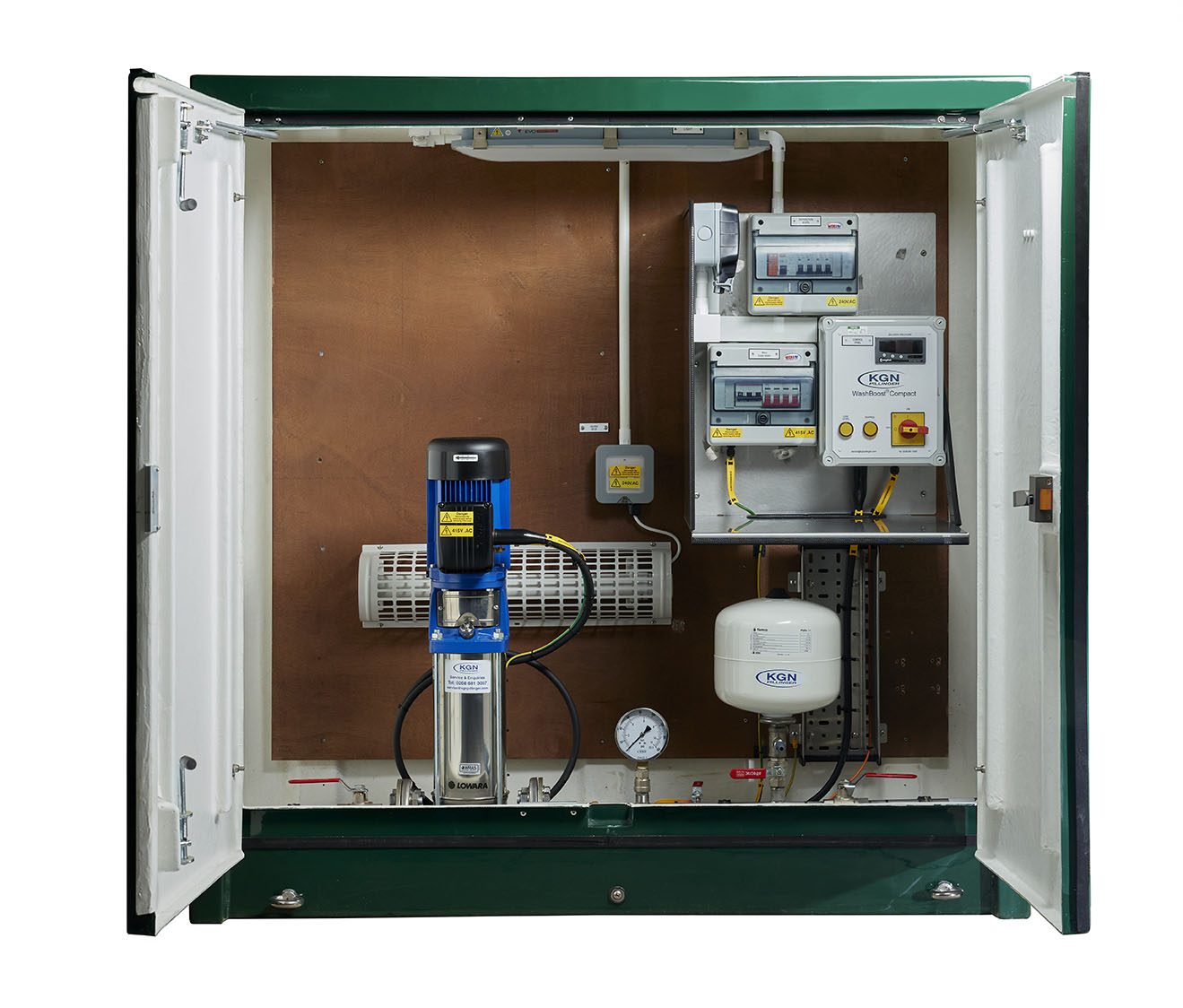

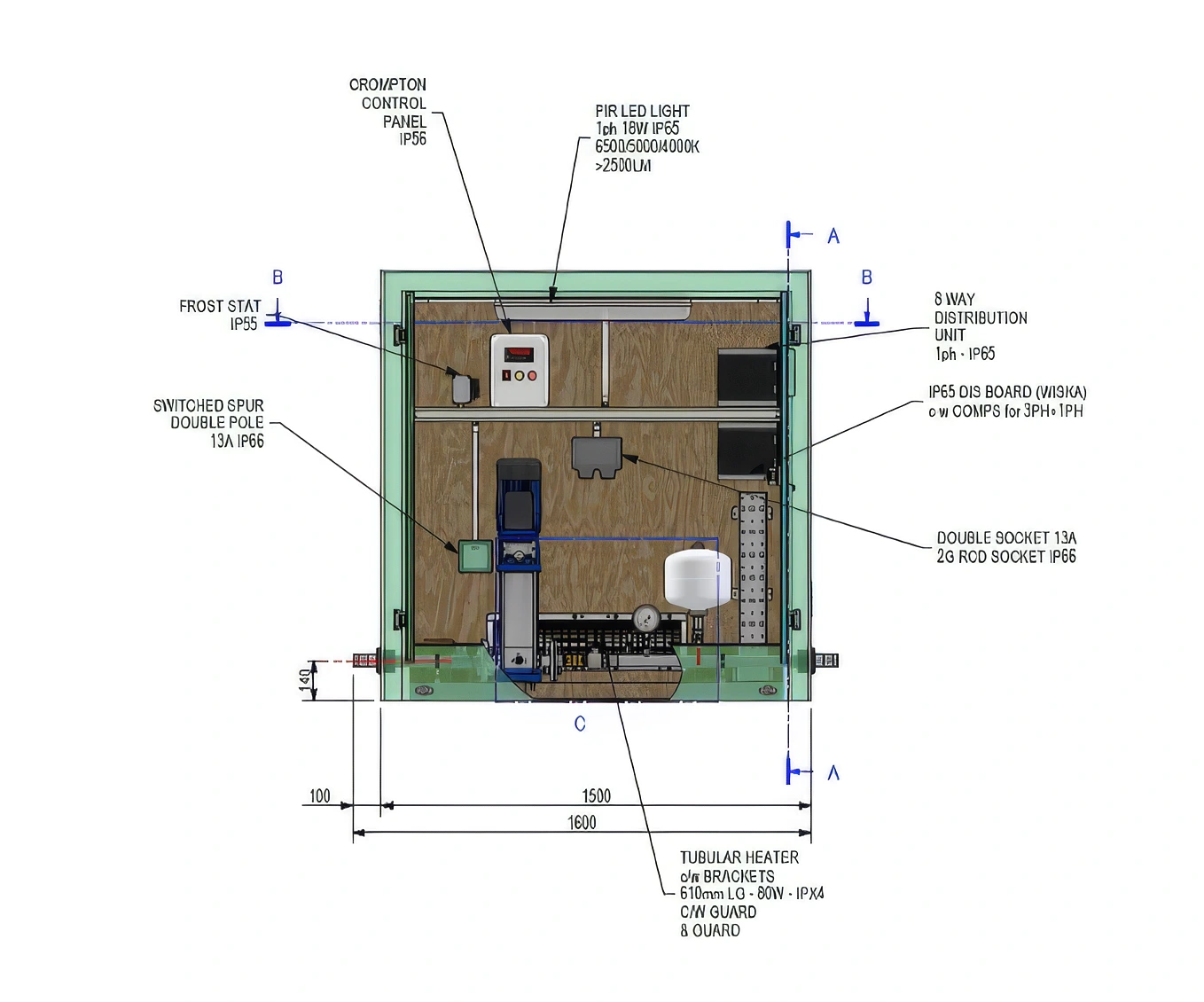

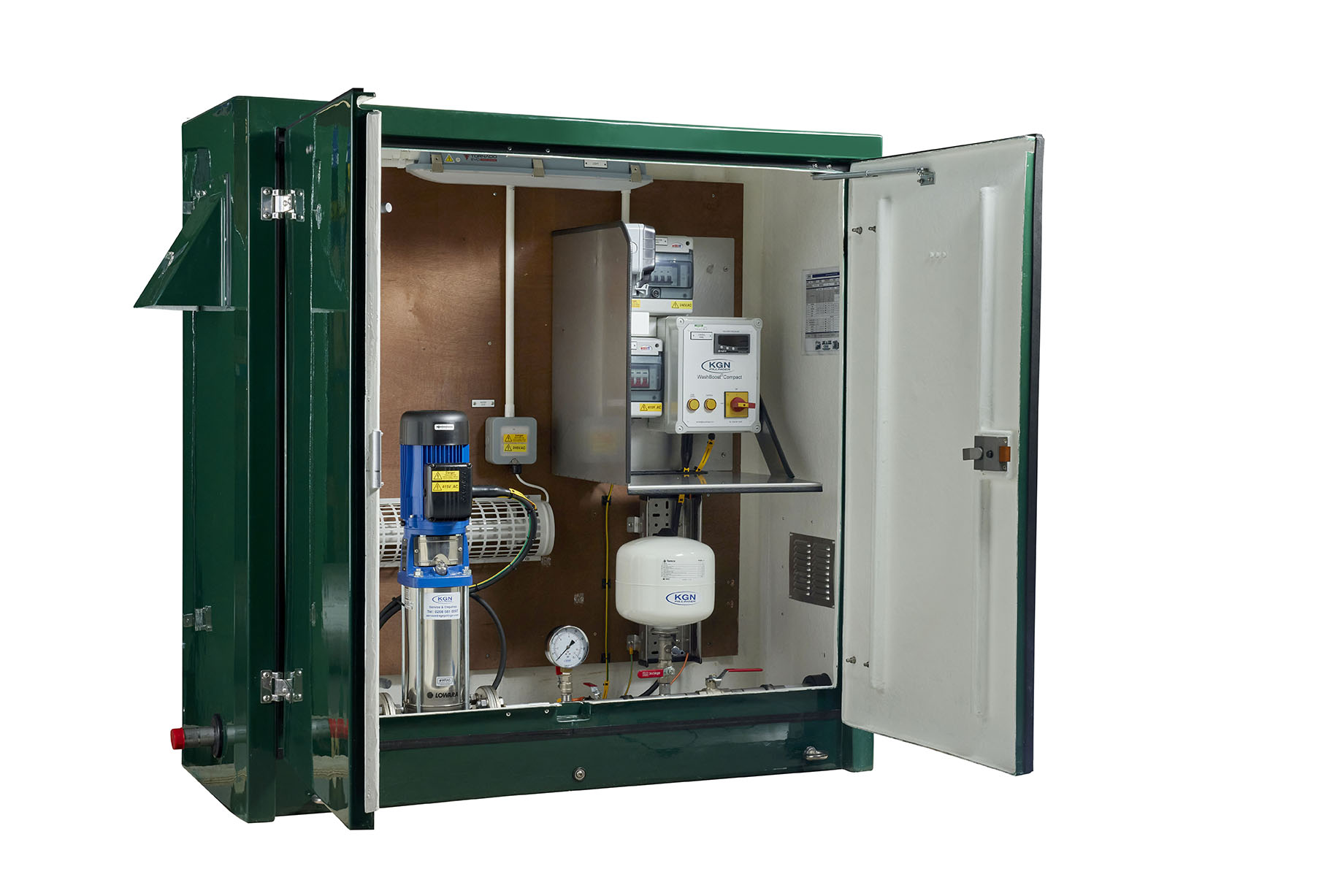

The WashBoost™ Compact is supplied as a fully packaged, off-site assembled booster set, ensuring consistent quality and reduced installation time.
- Mounted on a fabricated 304 stainless steel frame
- Installed within an IP55-rated enclosure with building services electrics
- Designed to provide durability and protection in demanding environments
All major components are selected from stocked parts, allowing for minimal lead times and efficient servicing.
Control & Operation
The system is designed for simple and dependable operation, removing the need for traditional mechanical control methods:
- Fixed-speed booster pump configuration
- Pressure transducer control system
- Adjustable cut-in pressures via process controller
- In-house assembled starter box with integrated control
This modern approach removes reliance on unreliable pressure switches, improving system stability and performance.
Key Features
- 304 stainless steel base frame for strength and longevity
- 316L stainless steel pipework for corrosion resistance
- IP55 enclosure protecting electrical components
- Electrical components protected from direct water jets
- High-efficiency IE3 motor for improved energy performance
- Fully assembled and factory-tested prior to delivery
Typical Applications
- Water utility and wastewater treatment sites
- Manual washdown stations
- Industrial cleaning applications
- Remote or unmanned infrastructure
Installation
The WashBoost™ Compact is designed for quick and straightforward installation:
- Delivered fully assembled and ready for connection
- Requires only a single electrical supply
- Minimal on-site work required
Performance & Reliability
Built using high-quality stainless steel components and proven control technology, the WashBoost™ Compact is engineered to provide long service life with minimal maintenance.
Its simple design, combined with readily available components, ensures dependable operation and fast turnaround for replacement parts if required.
