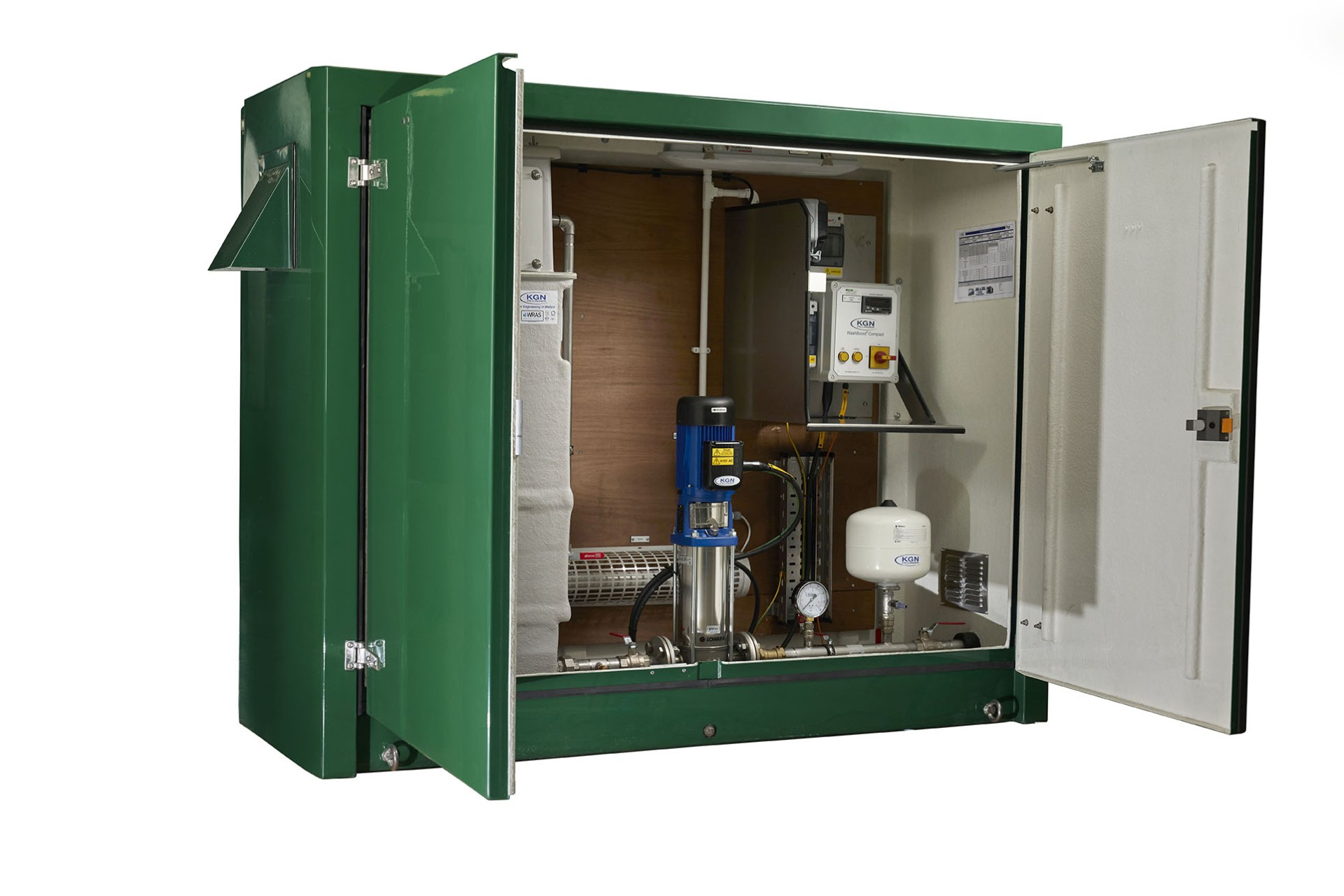

WashBoost™ Compact AB
The KGN Pillinger WashBoost™ Compact AB is based on the standard WashBoost™ Compact unit but incorporates an integral break tank to provide enhanced backflow protection. Designed for use on water utility and wastewater sites, the system includes a Category 5 AB air gap, ensuring the incoming water supply is fully protected from contamination risks associated with hazardous environments.
This makes the unit ideal where a direct connection to the mains water supply requires the highest level of backflow prevention.
Product Variations
- WashBoost™ Compact AB 511 Left Hand Booster System
- WashBoost™ Compact AB 511 Right Hand Booster System
- WashBoost™ Compact AB 513 Left Hand Booster System
- WashBoost™ Compact AB 513 Right Hand Booster System
- WashBoost™ Compact AB 1006 Left Hand Booster System
- WashBoost™ Compact AB 1006 Right Hand Booster System
- WashBoost™ Compact AB 1008 Left Hand Booster System
- WashBoost™ Compact AB 1008 Right Hand Booster System
Key Benefits
- Provides Category 5 backflow protection via an AB air gap
- Protects the mains water supply from contamination risks
- Simple and cost-effective booster solution
- Fully factory-assembled for rapid deployment
- Single power supply required
- Short lead times using stocked components

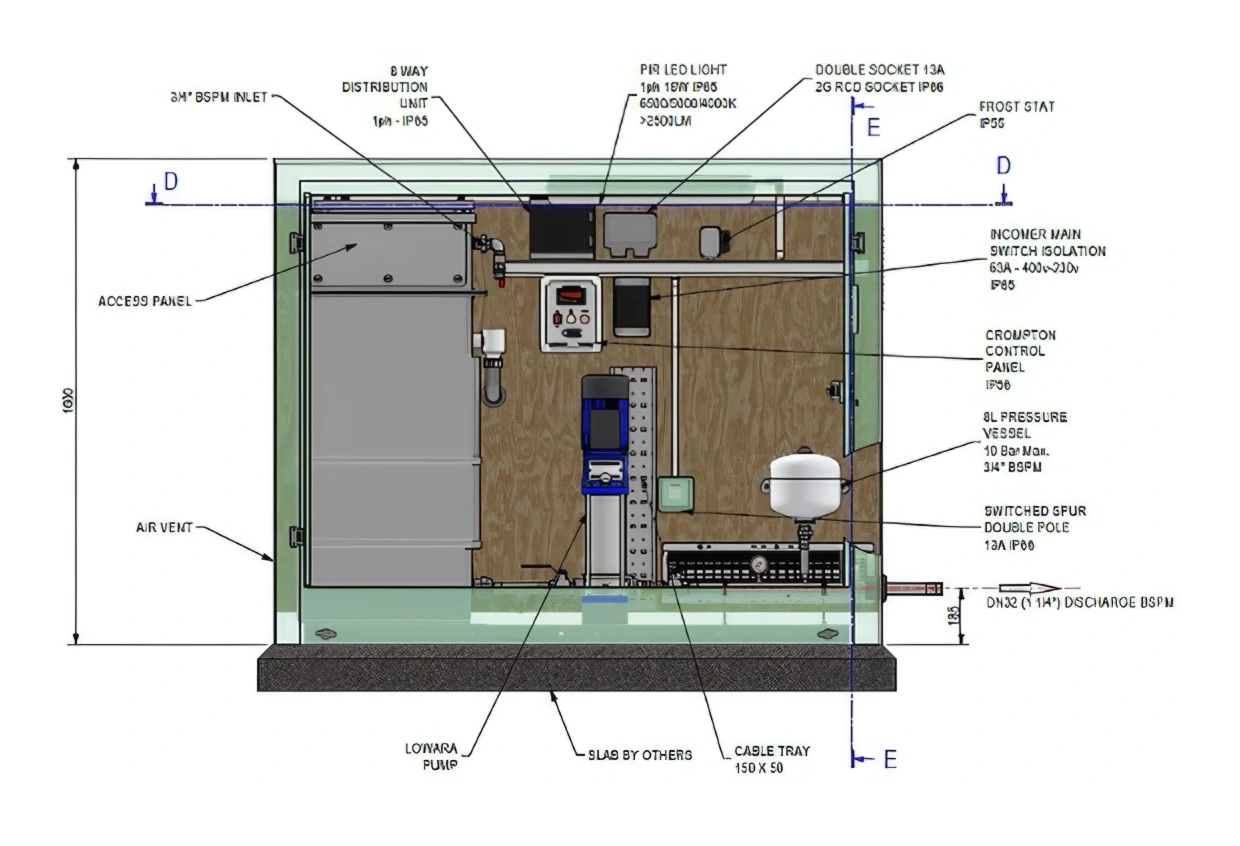

Design & Construction

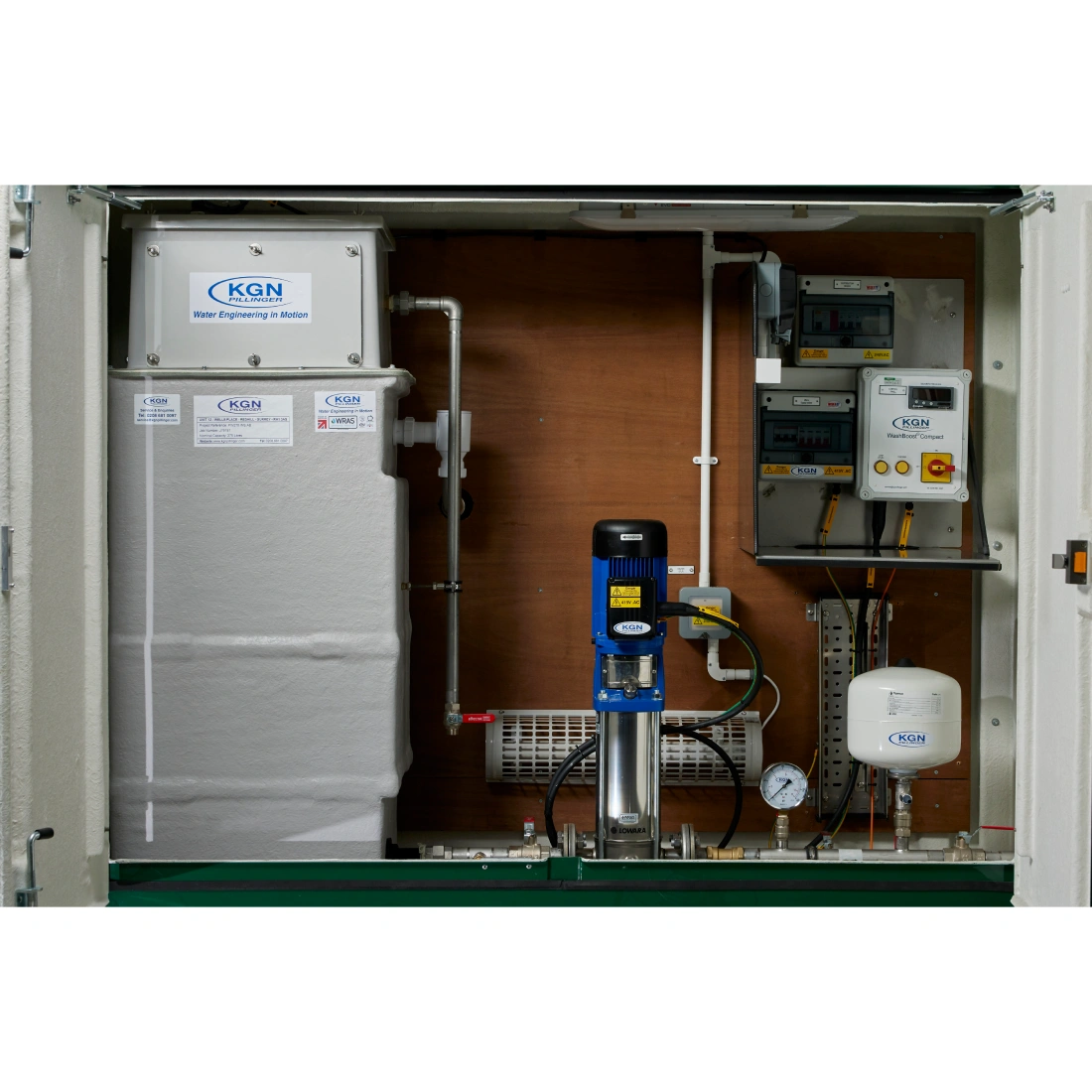

The WashBoost™ Compact AB is identical in construction to the standard Compact unit, with the addition of an integrated break tank.
- Packaged, off-site assembled booster system
- Mounted on a fabricated 304 stainless steel frame
- 316L stainless steel pipework for corrosion resistance
- Installed within an IP55-rated enclosure with building services electrics
All components are selected from stocked parts to ensure minimal lead times and ease of servicing.
Control & Operation
The system provides reliable and consistent operation using modern control technology:
- Fixed-speed booster pump configuration
- Pressure transducer-controlled operation
- Adjustable cut-in pressures via process controller
- In-house assembled starter box with integrated controls
This removes reliance on traditional pressure switches, improving reliability and performance.
Key Features

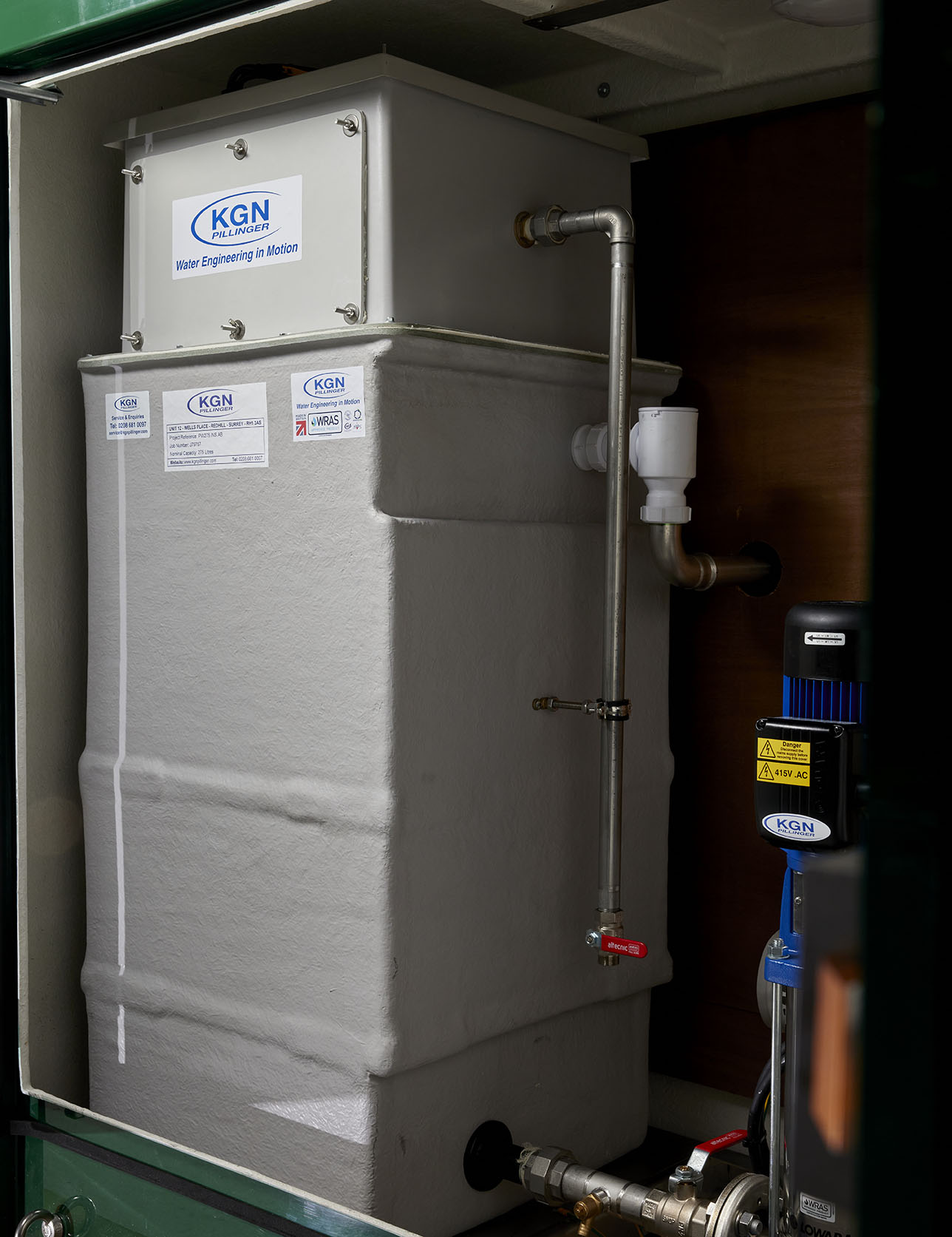

- Integrated break tank with AB air gap for Category 5 protection
- 304 stainless steel base frame for durability
- 316L stainless steel pipework throughout
- IP55 enclosure protecting electrical components
- Electrical components protected from direct water jets
- High-efficiency IE3 motor
- Fully assembled and factory-tested prior to delivery
Typical Applications
- Water utility and wastewater treatment sites
- Sites requiring Category 5 backflow protection
- Manual washdown stations fed from the mains supply
- Hazardous environments where a water contamination risk is present
Installation
The WashBoost™ Compact AB is designed for quick and efficient installation:
- Delivered fully assembled and ready for connection
- Requires only a single electrical supply
- Simple integration with the incoming mains supply
Performance & Compliance
By incorporating an AB air gap break tank, the system ensures compliance with regulations governing the protection of potable water supplies from high-risk contamination sources.
This makes it a critical solution for wastewater and utility applications where safety and compliance are paramount.
