WashBoost™ Compact AB HR

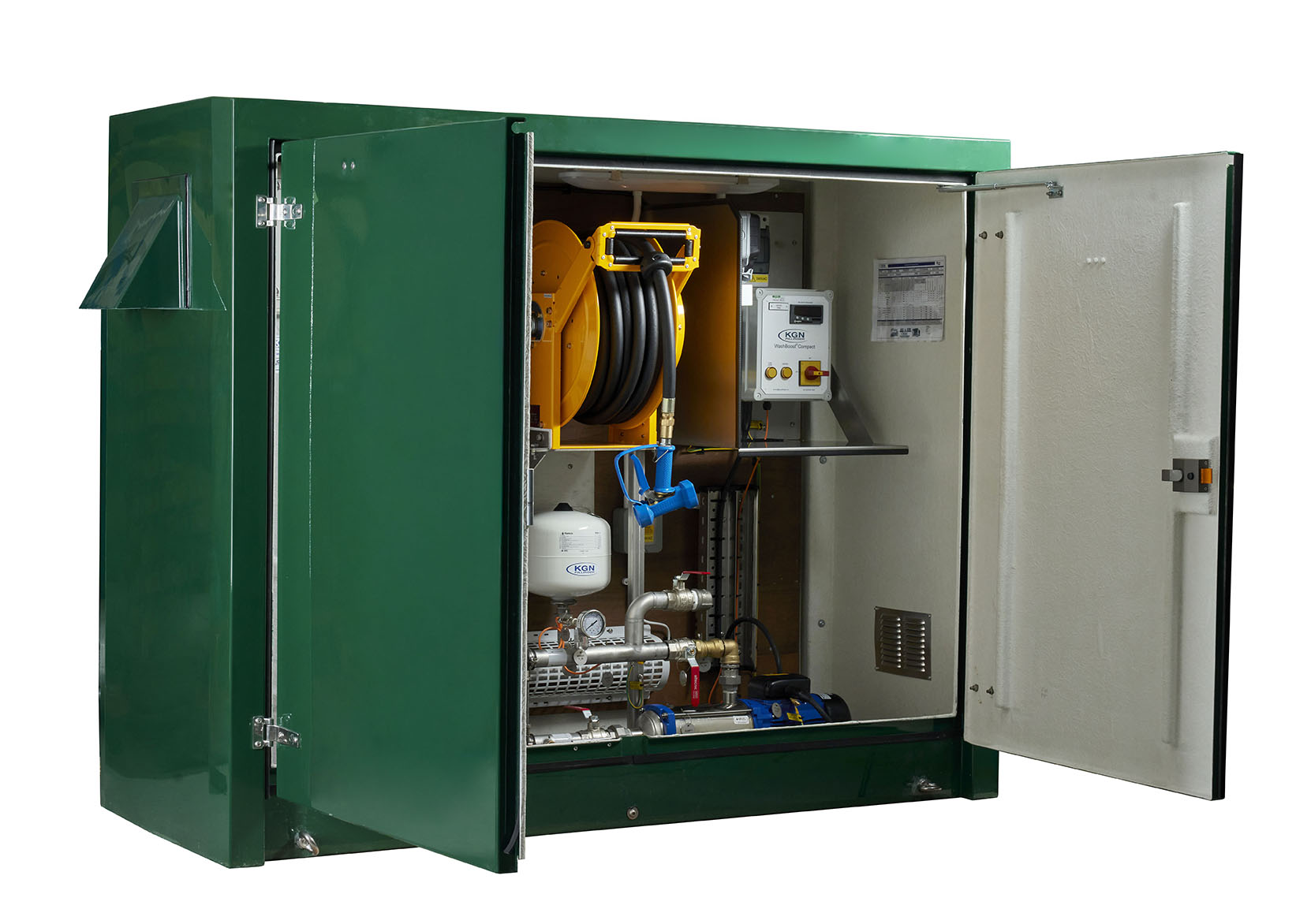

The KGN Pillinger WashBoost™ Compact AB Hose Reel is based on the standard WashBoost™ Compact AB unit, with the addition of an integrated hose reel housed within the kiosk for immediate washdown use. The system includes a Category 5 AB air gap break tank, ensuring full protection of the incoming mains water supply from contamination risks commonly present on wastewater sites.
Designed for convenience and efficiency, this unit provides a complete, self-contained washdown solution for localised cleaning applications.
Product Variations
- WashBoost™ Compact AB 511 Hose Reel (10m) Booster System
- WashBoost™ Compact AB 511 Hose Reel (20m) Booster System
- WashBoost™ Compact AB 511 Hose Reel (30m) Booster System
Key Benefits
- Integrated hose reel for immediate washdown use
- Available in 10 m, 20 m and 30 m hose lengths
- Provides Category 5 backflow protection via an AB air gap
- Ideal for local washdown applications
- Fully factory-assembled for rapid installation
- Spare connection for future expansion

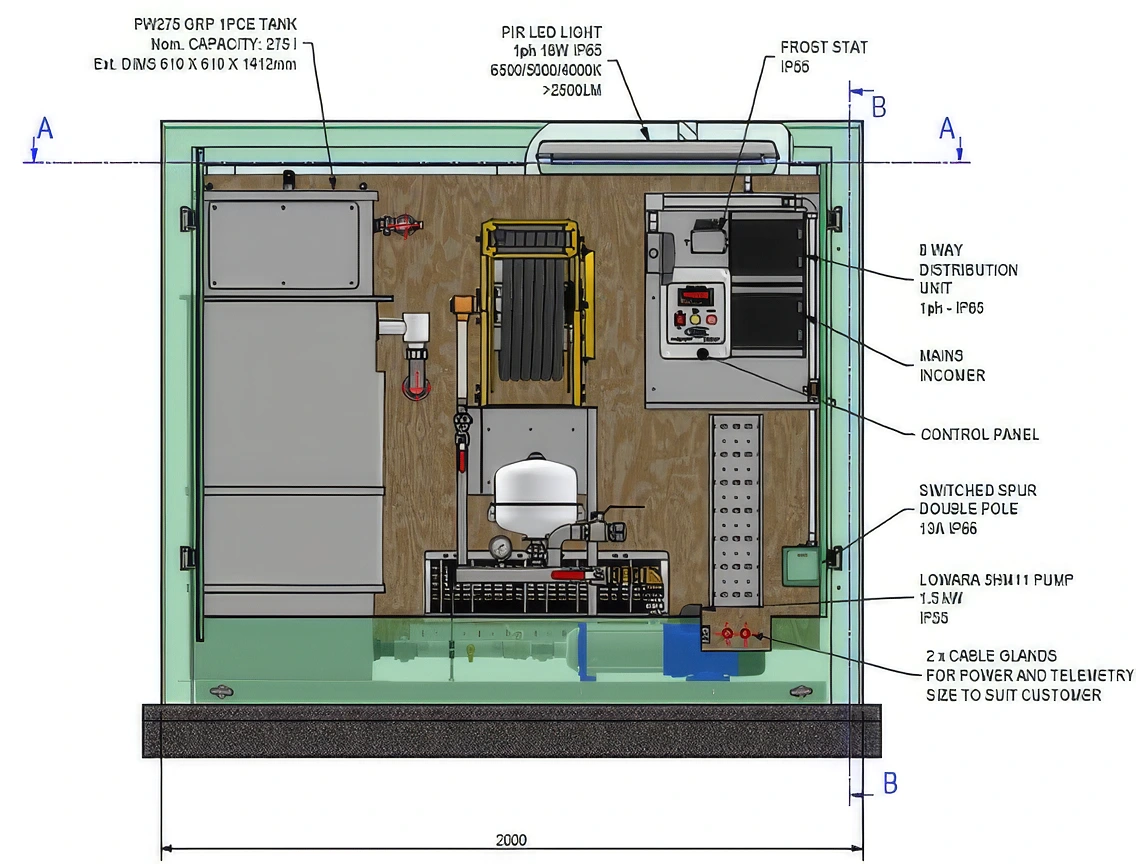

Design & Construction

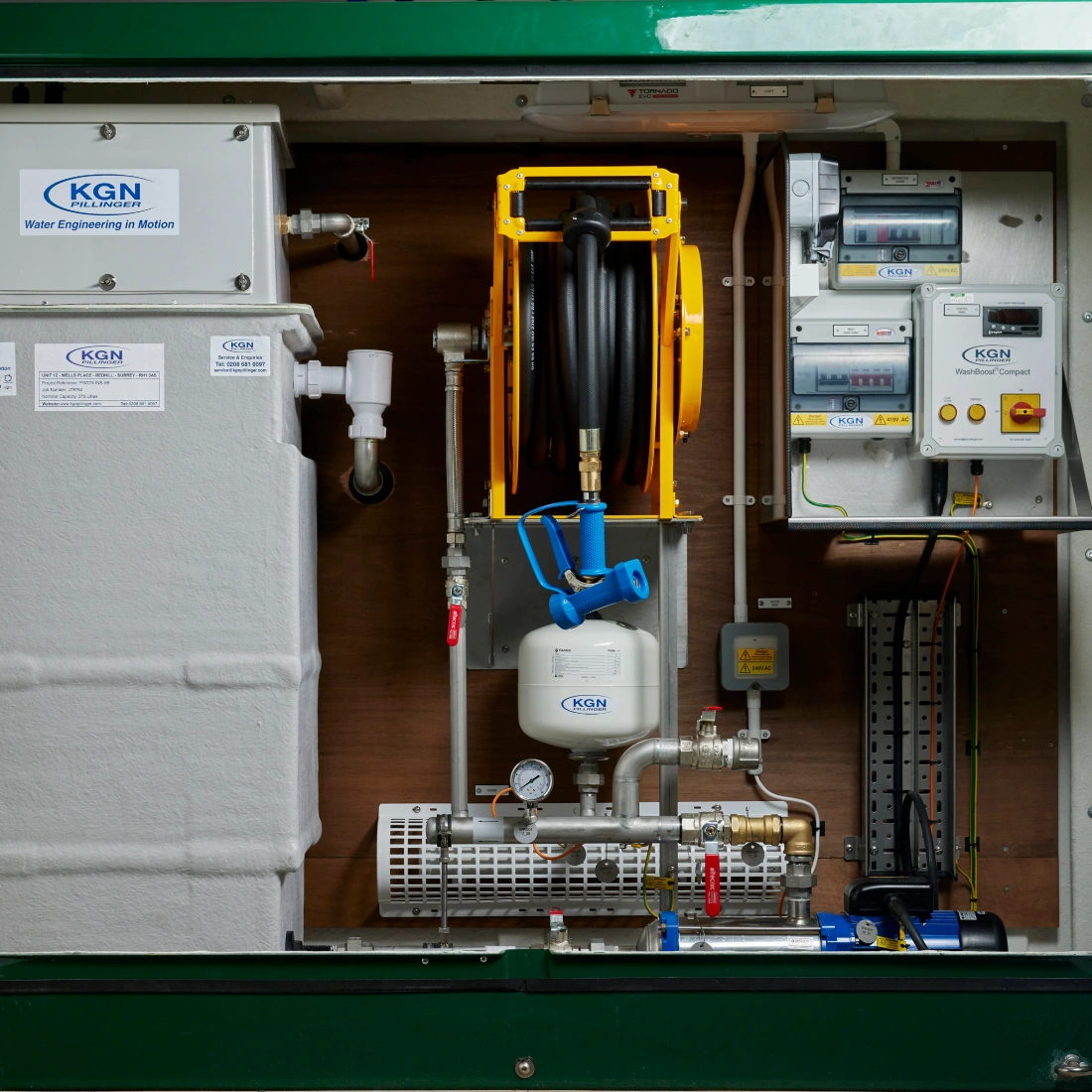

The WashBoost™ Compact AB Hose Reel unit retains the robust construction of the standard AB system, with added washdown functionality.
- Integrated hose reel within the kiosk enclosure
- Packaged, off-site assembled booster system
- Mounted on a 304 stainless steel frame
- 316L stainless steel pipework throughout
- Installed within an IP55-rated enclosure with building services electrics
The self-contained design ensures durability, ease of use and minimal installation complexity.
Washdown Functionality

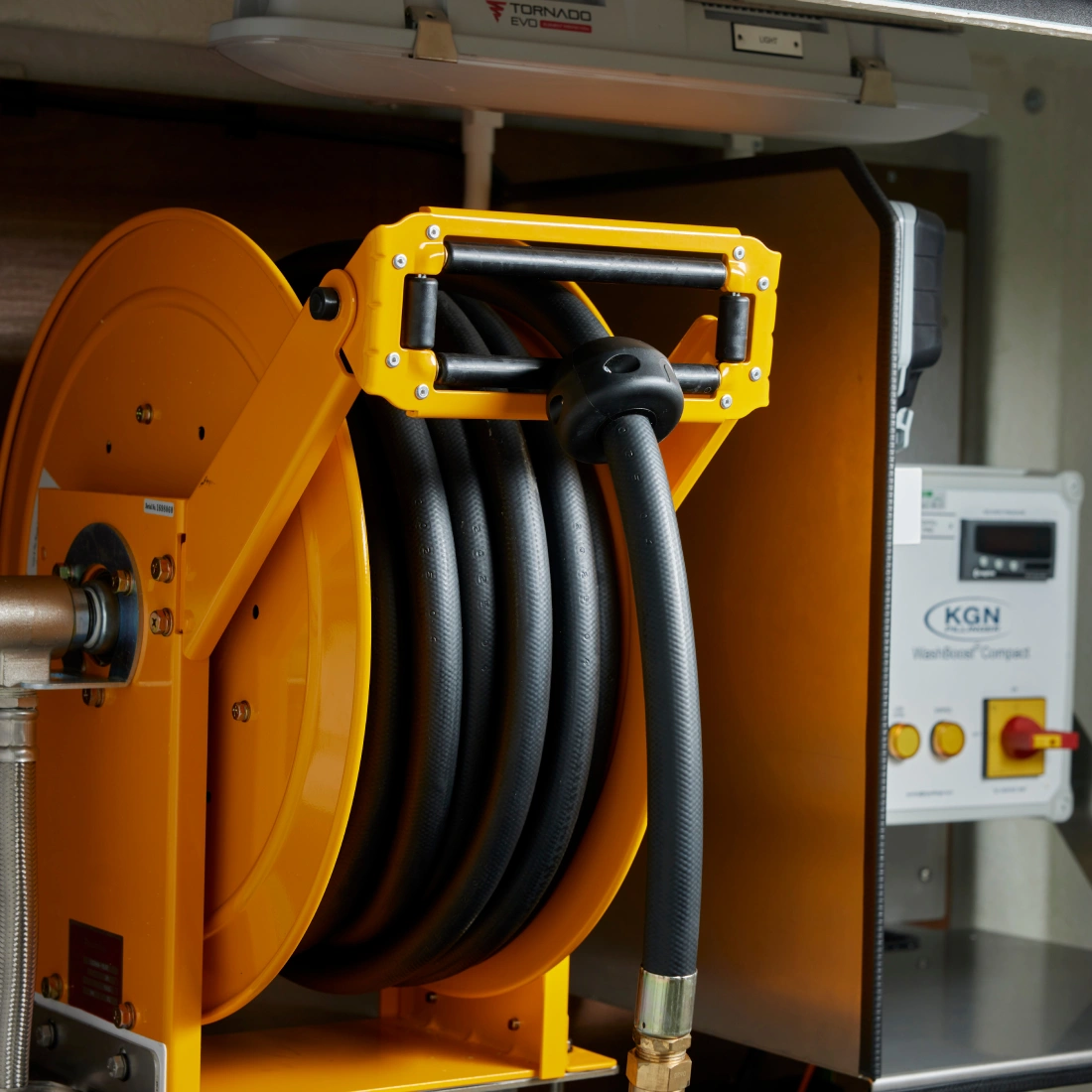

- Hose reel supplied internally within the kiosk
- Standard 10 m hose length, with longer options available
Spare Discharge Connection
A spare discharge connection is provided for:
- Future system expansion
- Connection to remote washdown points
This provides flexibility for both current and future site requirements.
Control & Operation
- Fixed-speed booster pump configuration
- Pressure transducer-controlled system
- Adjustable cut-in pressures via process controller
- In-house assembled starter box with integrated controls
The system is designed to remove reliance on traditional pressure switches, improving reliability and performance.
Key Features
- Integrated break tank with AB air gap for Category 5 protection
- Internal hose reel system
- 304 stainless steel base frame
- 316L stainless steel pipework
- IP55 enclosure protecting electrical components
- Electrical components protected from direct water jets
- High-efficiency IE3 motor
- Fully assembled and factory-tested prior to delivery
Typical Applications
- Wastewater treatment works requiring local washdown
- Water utility sites with contamination risk
- Industrial washdown stations
- Remote or unmanned locations requiring self-contained cleaning solutions
Installation
The unit is supplied fully assembled for fast installation:
- Delivered ready for connection
- Requires only a single electrical supply
- Minimal on-site work required
